Protect against impact damage with the Intralox Series 800 Tough Flat Top belt.
Built to withstand the toughest food-processing applications, the S800 Tough Flat Top belt is made of our Hi-Impact material that handles extreme impacts. The drive bar on its underside channels debris away from the belt, simplifying cleanup.
- Fully flush edges
- Hi-Impact material drastically reduces breakage risks
- Closed surface prevents product loss
| in | mm | |
| Pitch | 2.00 | 51.0 |
| Minimum Width | 2 | 51 |
| Width Increments | 0.66 | 16.8 |
| Opening Size | - | - |
| Open Area | 0% | |
| Hinge Style | Open | |
| Rod Retention; Rod Type | Snap-lock; headed | |
- Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
- Smooth, closed upper surface with fully flush edges.
- Cam-link designed hinges expose more hinge and rod area as the belt goes around the sprocket. This exclusive Intralox feature allows unsurpassed cleaning access to this area.
- Drive bar on the underside of this belt channels water and debris to the outside of the belt for easier, faster cleanup. Drive bar effectiveness is proven both in-house and in field tests.
- White and grey material is fully FDA- and EU MC- compliant.
- Each belt material has a default rod material. Other rod materials are available. Intralox can help identify the best belt and rod material combination for your application.
- Detailed material information is provided in Product Line.
- Withstands extreme impact in food processing applications.
- Compatible with S800 Flat Top and S800 Open Hinge. Can be spliced directly into either style, using the same sprockets and accessories.
- Easy retrofit from S1800 without extensive conveyor frame changes for most meat industry applications since the A, B, C, and E dimensions are within 0.25 in (6 mm) of S1800.
- A molded-in indent 1.3 in (33 mm) from the edge is available.
- Streamlined Tough flights are available. Standard height is 4 in or (101.6 mm) or 6 in (152.4 mm).
- Custom flight heights are available. Contact Intralox Customer Service for more information.
| Belt Material | Default Rod Material, Diameter 0.24 in (6.1 mm) | Belt Strength | Temperature Range (continuous) | Belt Mass | |||
|---|---|---|---|---|---|---|---|
| lbf/ft | N/m | °F | °C | lb/ft² | kg/m² | ||
| Hi-Impact | PK | 500 | 7,300 | 0 to 120 | -18 to 49 | 2.26 | 11.03 |
| Hi-Impact | Polyethylene | 450 | 6,570 | 0 to 120 | -18 to 49 | 2.26 | 11.03 |
Split Ultra Abrasion Resistant Polyurethane (FDA) Sprockets
Series 800
Abrasion Resistant Split Metal Sprockets
Series 800

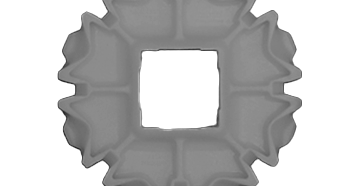

Molded Polypropylene Sprocket
Series 800
Molded Polyurethane Sprocket
Series 800
Molded Acetal Sprocket
Series 800
Angled EZ Clean™ Acetal Sprocket
Series 800
Angled EZ Clean™ Polypropylene Sprocket
Series 800
CleanLock™ Sprockets
Series 800
EZ Clean™ Sprocket
Series 800
Threaded Barrel Attachments
Series 800
Flat Top Base Flights (No-Cling)
Series 800
Tough Flights
Series 800
Open Hinge Impact Resistant Flights
Series 800
Nub Top Molded-In Sideguards
Series 800
Nub Top Base Flights (Double No-Cling)
Series 800
Heavy-Duty Edge Flights
Series 800
Bucket Flights
Series 800
Scoop Flights
Series 800
Heavy-Duty Edge Scoop Flights
Series 800
Flush Grid Base Flights (No-Cling)
Series 800
Impact Resistant Flights
Series 800
No-Cling Impact Resistant Open Hinge Nub Top Flights
Series 800
3-Piece Perforated Bucket and Scoop Flights
Series 800
Tapered Edge
Series 800

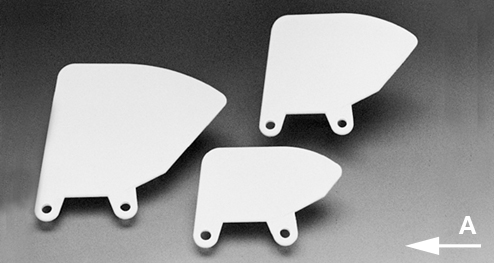

Sideguards
