Simplify sanitation with the Intralox Series 800 Open Hinge Flat Top belt.
S800 Open Hinge Flat Top belting pairs cleanability with durability to deliver outstanding results in food-processing applications. Its signature design exposes more hinge and rod area for easier cleaning, and the drive bar on its underside guides debris away from the belt.
- Lack of pockets and sharp corners prevents debris buildup
- Available in impact- and abrasion-resistant materials
- Compatible with Intralox S800 Flat Top belting
| in | mm | |
| Pitch | 2.00 | 50.8 |
| Minimum Width | 4 | 102 |
| Width Increments | 0.66 | 16.8 |
| Opening Size | - | - |
| Open Area | 0% | |
| Hinge Style | Open | |
| Rod Retention; Rod Type | Snap-lock; headed | |
- Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
- Smooth, closed upper surface with fully flush edges.
- Fully sculpted and radiused corners, so there are no pockets or sharp corners to catch and hold debris.
- Cam-link designed hinges expose more hinge and rod area as the belt goes around the sprocket. This exclusive Intralox feature allows unsurpassed cleaning access to this area.
- Drive bar on the underside of this belt channels water and debris to the outside of the belt for easier, faster cleanup. Drive bar effectiveness is proven both in-house and in field tests.
- Each belt material has a default rod material. Other rod materials are available. Intralox can help identify the best belt and rod material combination for your application.
- Detailed material information is provided in Product Line.
- Compatible with S800 Flat Top. Can be spliced directly into S800 Flat Top, using the same sprockets and accessories.
- Streamlined flights are available. Standard height is 6 in (152.4 mm).
- Custom flight heights are available. Contact Intralox Customer Service for more information.
| Belt Material | Default Rod Material, Diameter 0.24 in (6.1 mm) | Belt Strength | Temperature Range (continuous) | Belt Mass | |||
|---|---|---|---|---|---|---|---|
| lbf/ft | N/m | °F | °C | lb/ft² | kg/m² | ||
| Polypropylene | Polypropylene | 900 | 13,100 | 34 to 220 | 1 to 104 | 1.63 | 7.96 |
| Polyethylene | Polyethylene | 500 | 7,300 | -50 to 150 | -46 to 66 | 1.70 | 8.30 |
| Acetal | Polyethylene | 900 | 13,100 | -50 to 150 | -46 to 66 | 2.52 | 12.3 |
| PK | PK | 900 | 13,100 | -40 to 176 | -40 to 80 | 2.26 | 11.03 |
| X-ray detectable acetal | X-ray detectable acetal | 900 | 13,100 | -50 to 200 | -46 to 93 | 3.06 | 14.94 |
| Document Name | Document Type | File Type | File Size |
|---|---|---|---|
| PK Belt Material Product Highlight | 444 KB | ||
| S800_OpenHingeFlatTop_FlushEdge_4inch_(Imperial).dxf | CAD Drawing | DXF | 799 KB |
| S800_OpenHingeFlatTop_FlushEdge_4inch_(Metric).dxf | CAD Drawing | DXF | 912 KB |
| S800_OpenHingeFlatTop_FlushEdge_6inch_(Imperial).dxf | CAD Drawing | DXF | 1 MB |
| S800_OpenHingeFlatTop_FlushEdge_6inch_(Metric).dxf | CAD Drawing | DXF | 1 MB |
| S800_OpenHingeFlatTop_Interior_4inch_(Imperial).dxf | CAD Drawing | DXF | 729 KB |
| S800_OpenHingeFlatTop_Interior_4inch_(Metric).dxf | CAD Drawing | DXF | 819 KB |
| S800_OpenHingeFlatTop_Interior_6inch_(Imperial).dxf | CAD Drawing | DXF | 1 MB |
| S800_OpenHingeFlatTop_Interior_6inch_(Metric).dxf | CAD Drawing | DXF | 1 MB |
| Series 800 Impact Resistant Flights Product Highlight | 238 KB |
Split Ultra Abrasion Resistant Polyurethane (FDA) Sprockets
Series 800
Abrasion Resistant Split Metal Sprockets
Series 800
EZ Clean™ Sprocket
Series 800
Molded Polypropylene Sprocket
Series 800
Molded Polyurethane Sprocket
Series 800
Molded Acetal Sprocket
Series 800
Angled EZ Clean™ Acetal Sprocket
Series 800
Angled EZ Clean™ Polypropylene Sprocket
Series 800
CleanLock™ Sprockets
Series 800

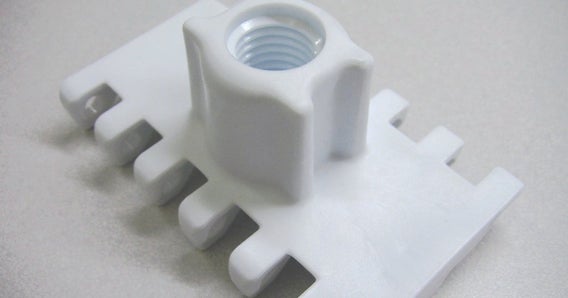

Threaded Barrel Attachments
Series 800

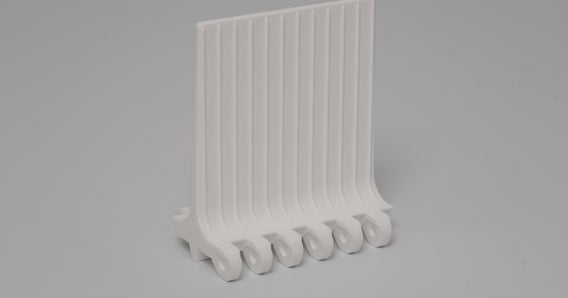

Flat Top Base Flights (No-Cling)
Series 800

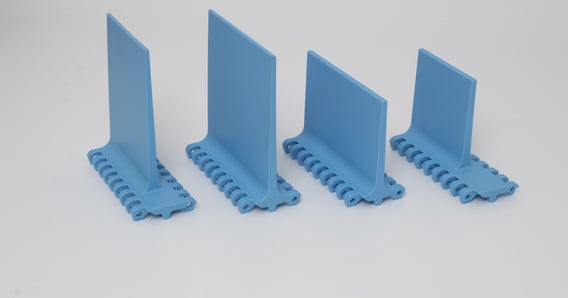

Tough Flights
Series 800

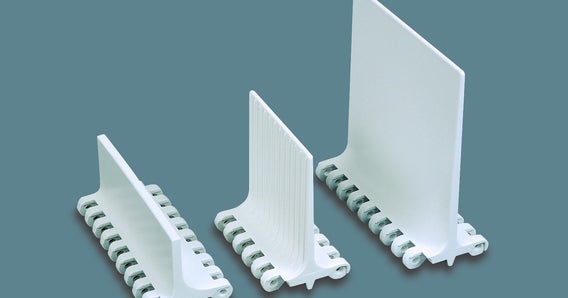

Open Hinge Impact Resistant Flights
Series 800

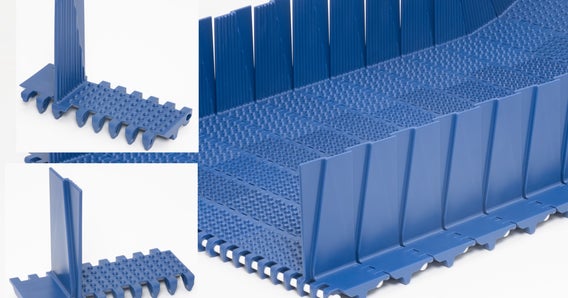

Nub Top Molded-In Sideguards
Series 800
Nub Top Base Flights (Double No-Cling)
Series 800

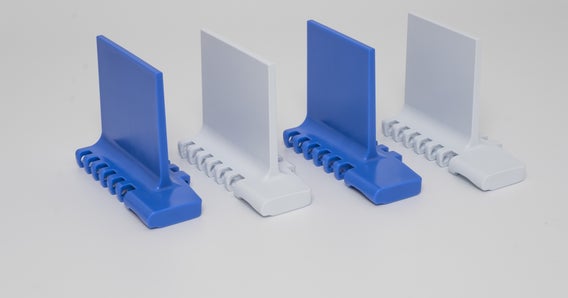

Heavy-Duty Edge Flights
Series 800

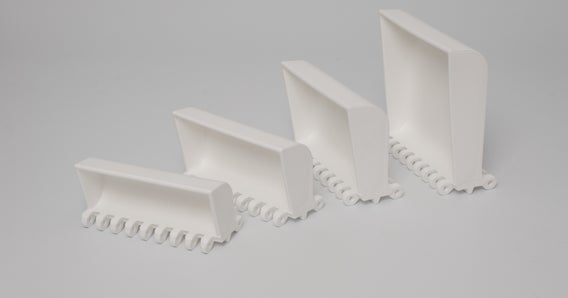

Bucket Flights
Series 800

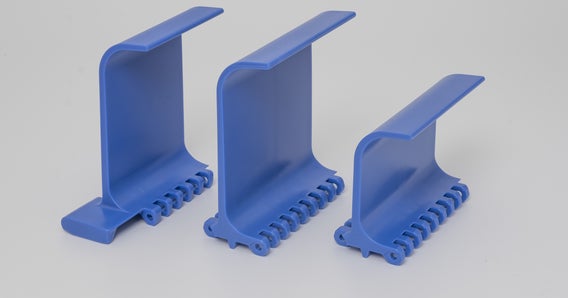

Scoop Flights
Series 800

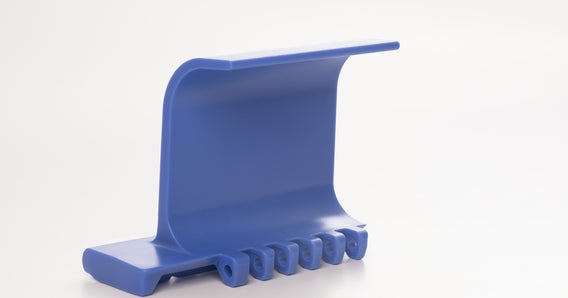

Heavy-Duty Edge Scoop Flights
Series 800

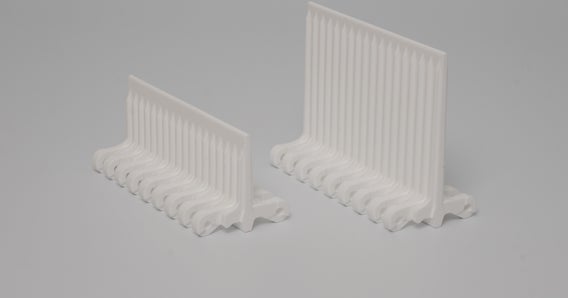

Flush Grid Base Flights (No-Cling)
Series 800

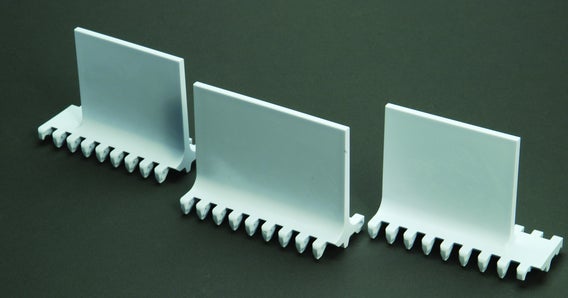

Impact Resistant Flights
Series 800

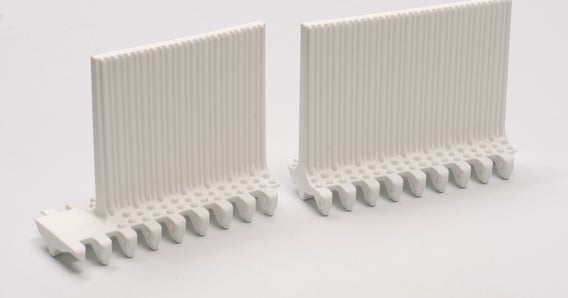

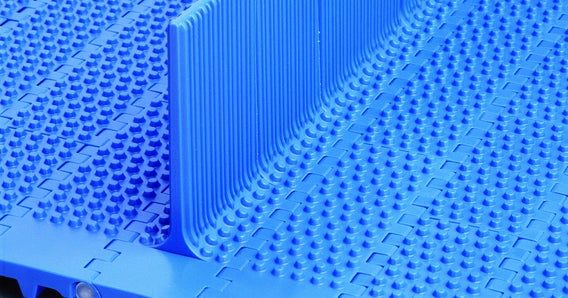

No-Cling Impact Resistant Open Hinge Nub Top Flights
Series 800

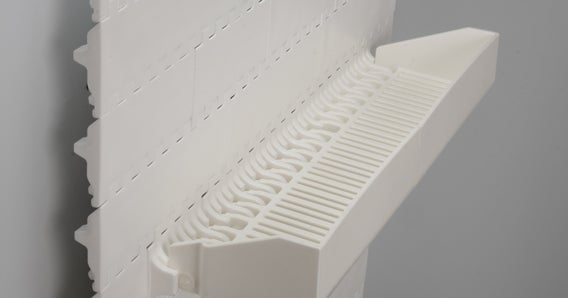

3-Piece Perforated Bucket and Scoop Flights
Series 800

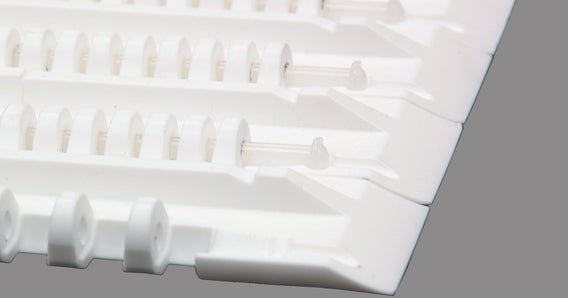

Tapered Edge
Series 800

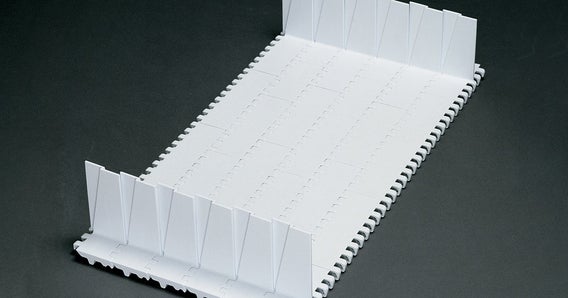

Sideguards
Series 800
Streamline Flights
Series 800

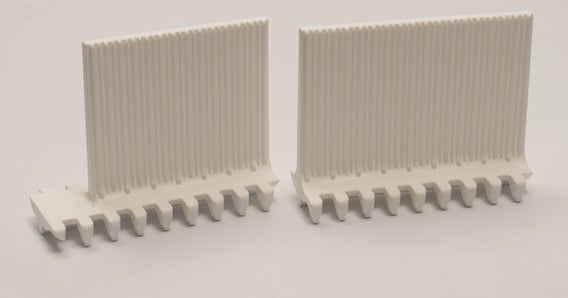

No-Cling Impact Resistant Open Hinge Flights
