Confidently convey a wide range of products with the Intralox Series 900 Flat Top belt.
Versatile and dependable, this belt features a smooth, closed surface that prevents product loss. Available in multiple materials for diverse operating conditions, it delivers reliable performance across applications and industries.
- 1.07-in (27.2-mm) pitch
- Fully flush edges promote worker safety
- Available in High Heat Resistant (HHR) nylon for high-heat applications
| in | mm | |
| Pitch | 1.07 | 27.2 |
| Minimum Width | 2 | 51 |
| Width Increments | 0.33 | 8.4 |
| Opening Size | - | - |
| Open Area | 0% | |
| Hinge Style | Closed | |
| Rod Retention; Rod Type | Snap-lock; headed | |
- Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
- Smooth, closed surface with fully flush edges.
- HR nylon belts use short rodlets to hold the main hinge rod in place. The rodlets are made from the same material as the main rod.
- Use HR nylon in dry, elevated-temperature applications.
- Each belt material has a default rod material. Other rod materials are available. Intralox can help identify the best belt and rod material combination for your application.
- Detailed material information is provided in Product Line.
- Ideal for handling glass and other containers.
| Belt Material | Default Rod Material, Diameter 0.18 in (4.6 mm) | Belt Strength | Temperature Range (continuous) | Belt Mass | |||
|---|---|---|---|---|---|---|---|
| lbf/ft | N/m | °F | °C | lb/ft² | kg/m² | ||
| Polypropylene | Polypropylene | 700 | 10,200 | 34 to 220 | 1 to 104 | 0.96 | 4.69 |
| Polyethylene | Polyethylene | 350 | 5,110 | -50 to 150 | -46 to 66 | 1.01 | 4.95 |
| Acetal | Polypropylene | 1,480 | 21,600 | 34 to 200 | 1 to 93 | 1.50 | 7.30 |
| HSEC acetal | Polypropylene | 800 | 11,700 | 34 to 200 | 1 to 93 | 1.50 | 7.30 |
| HR nylon | HR nylon | 1,200 | 17,500 | -50 to 240 | -46 to 116 | 1.40 | 6.80 |
| HHR nylon | HHR nylon | 1,200 | 17,500 | -50 to 310 | -46 to 154 | 1.40 | 6.80 |
| Acetal1 | Polyethylene | 1,000 | 14,600 | -50 to 70 | -46 to 21 | 1.50 | 7.30 |
| Detectable polypropylene A22 | Polypropylene | 450 | 6,570 | 34 to 150 | 1 to 66 | 2.21 | 10.79 |
Polyethylene rods can be used in cold applications when impacts or sudden starts/stops occur. Please note lower rating.
| Document Name | Document Type | File Type | File Size |
|---|---|---|---|
| S900_FlatTop_[SideView]_(Imperial).dxf | CAD Drawing | DXF | 58 KB |
| S900_FlatTop_[SideView]_(Metric).dxf | CAD Drawing | DXF | 59 KB |
| S900_FlatTop_[TopView]_(Imperial).dxf | CAD Drawing | DXF | 135 KB |
| S900_FlatTop_[TopView]_(Metric).dxf | CAD Drawing | DXF | 144 KB |

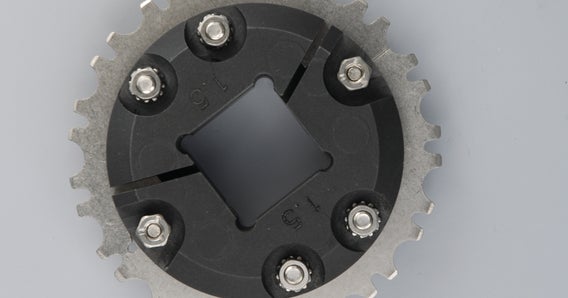

Split Metal Sprocket
Series 900
Split Metal with Polyurethane (FDA) Joining Plates Reduced Clearance Sprocket
Series 900

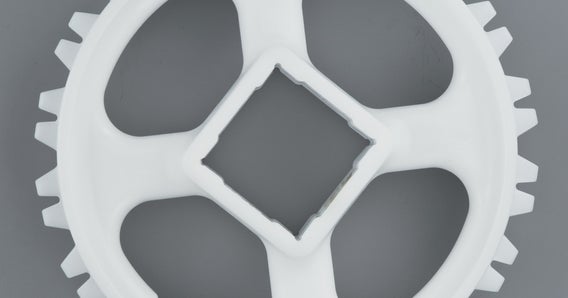

EZ Clean™ Sprocket
Series 900

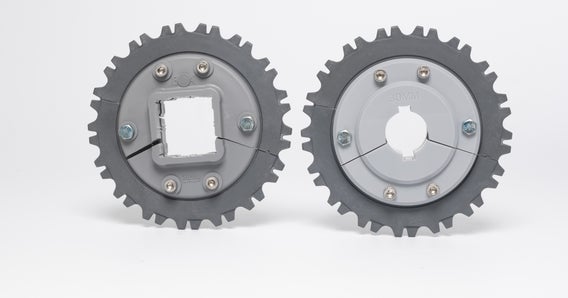

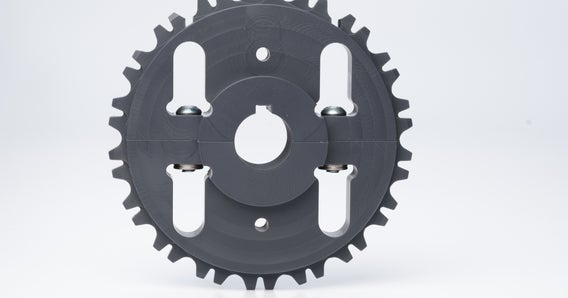

Molded Tooth Plate Split Glass-Filled Nylon Sprockets
Series 900

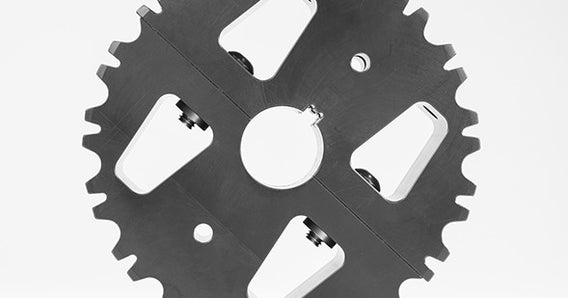

Dual-Tooth Nylon Split Sprockets
Series 900

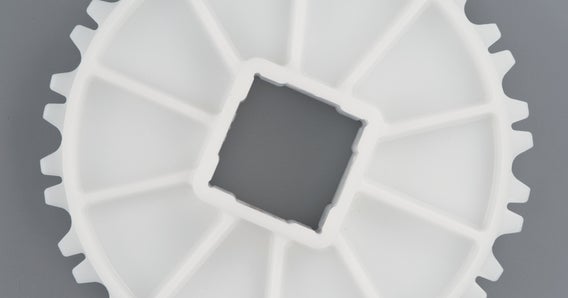

Molded Sprocket
Series 900
Nylon Split Sprockets
Series 900

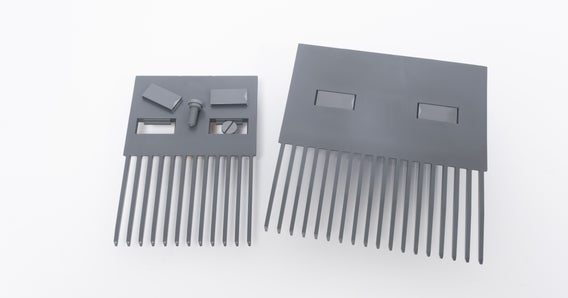

Finger Transfer Plates
Series 900

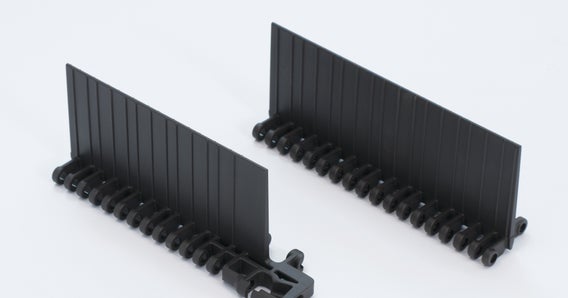

Flat Top Base Flights (Streamline Rubber)
Series 900

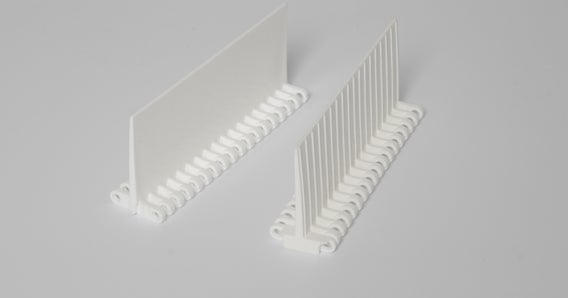

Flush Grid Base Flights (Streamline/No-Cling)
Series 900

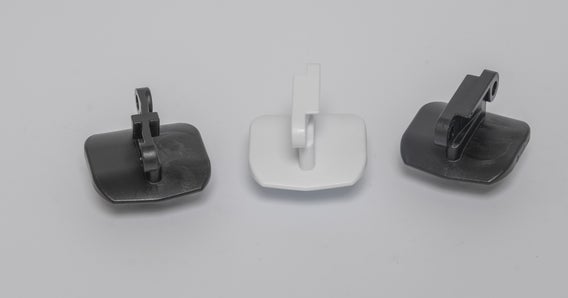

Hold Down Tabs
Series 900

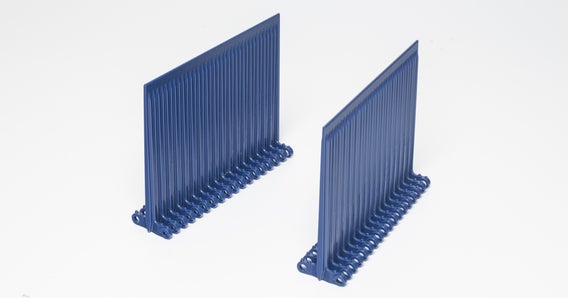

Flush Grid Nub Top Base Flights (Double No-Cling)
Series 900

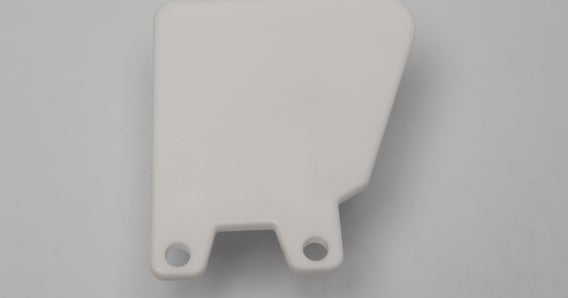

Sideguards
Series 900
Open Flush Grid, Flush Edge Base Flights (No-Cling)
Series 900

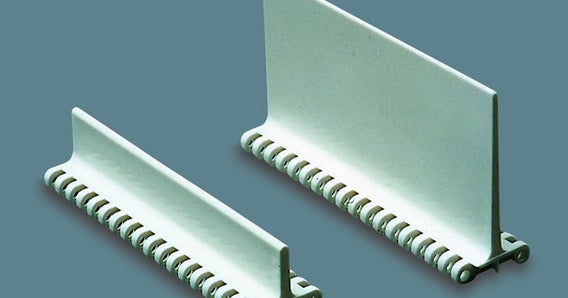

Flat Top Base Flights (Streamline)
