Decrease downtime with our durable option for pasteurizers, warmers, and coolers.
Used especially in the beverage industry, the Intralox Series 400 Raised Rib belt features an innovative raised rib design for smooth product handling. Compatible with finger transfer plates, it offers all the advantages of modular plastic belting—including easy maintenance and simplified cleaning.
- 26% open area accelerates drainage
- Available with finger transfer plates for seamless transfers
- For advanced strength, refer to Intralox S1900 Raised Rib belting
| in | mm | |
| Pitch | 2.00 | 50.8 |
| Minimum Width | See Product Notes. | |
| Width Increments | ||
| Opening Size (approximate) | 0.25 × 0.24 | 6.4 × 6.1 |
| Open Area | 26% | |
| Product Contact Area | 36% | |
| Hinge Style | Closed | |
| Rod Retention; Rod Type | See Product Notes. | |
- Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
- All S400 Raised Rib polyethylene belts use headed rods.
- All S400 Raised Rib polypropylene belts use the Slidelox rod retention system and unheaded rods.
- Slidelox are glass-reinforced polypropylene. For improved chemical resistance, Slidelox are also available in polyvinylidene (PVDF) for Enduralox polypropylene belts.
- Each belt material has a default rod material. Other rod materials are available. Intralox can help identify the best belt and rod material combination for your application.
- Detailed material information is provided in Product Line.
- Use with finger transfer plates to reduce tippage at infeed and discharge.
- For stronger belt performance, see S1900 Raised Rib.
- Raised ribs extend 0.25 in (6.4 mm) above basic module.
- Custom-built in widths from 1.8 in (47 mm) and up for polyethylene and 3.5 in (89 mm) and up for polypropylene, in 0.33 in (8.4 mm) increments.
- Compatible with Intralox belt tensioners. See Intralox Belt Tensioners for more information.
| Belt Material | Default Rod Material, Diameter 0.24 in (6.1 mm) | Belt Strength | Temperature Range (continuous) | Belt Mass | |||
|---|---|---|---|---|---|---|---|
| lbf/ft | N/m | °F | °C | lb/ft² | kg/m² | ||
| Polypropylene | Polypropylene | 2,400 | 35,000 | 34 to 220 | 1 to 104 | 1.95 | 9.52 |
| Polyethylene | Polyethylene | 1,800 | 26,300 | -100 to 150 | -73 to 66 | 1.98 | 9.67 |
| Enduralox polypropylene | Enduralox polypropylene | 2,400 | 35,000 | 34 to 220 | 1 to 104 | 1.95 | 9.52 |
| Document Name | Document Type | File Type | File Size |
|---|---|---|---|
| S400_RaisedRib_FlushEdge_6inch_(Imperial).dxf | CAD Drawing | DXF | 287 KB |
| S400_RaisedRib_FlushEdge_6inch_(Metric).dxf | CAD Drawing | DXF | 311 KB |
| S400_RaisedRib_FlushEdge_8inch_(Imperial).dxf | CAD Drawing | DXF | 359 KB |
| S400_RaisedRib_FlushEdge_8inch_(Metric).dxf | CAD Drawing | DXF | 376 KB |
| S400_RaisedRib_FlushEdge_HeadedRod_[SideView]_(Imperial).dxf | CAD Drawing | DXF | 92 KB |
| S400_RaisedRib_FlushEdge_HeadedRod_[SideView]_(Metric).dxf | CAD Drawing | DXF | 99 KB |
| S400_RaisedRib_FlushEdge_Slidelox_[SideView]_(Imperial).dxf | CAD Drawing | DXF | 79 KB |
| S400_RaisedRib_FlushEdge_Slidelox_[SideView]_(Metric).dxf | CAD Drawing | DXF | 84 KB |

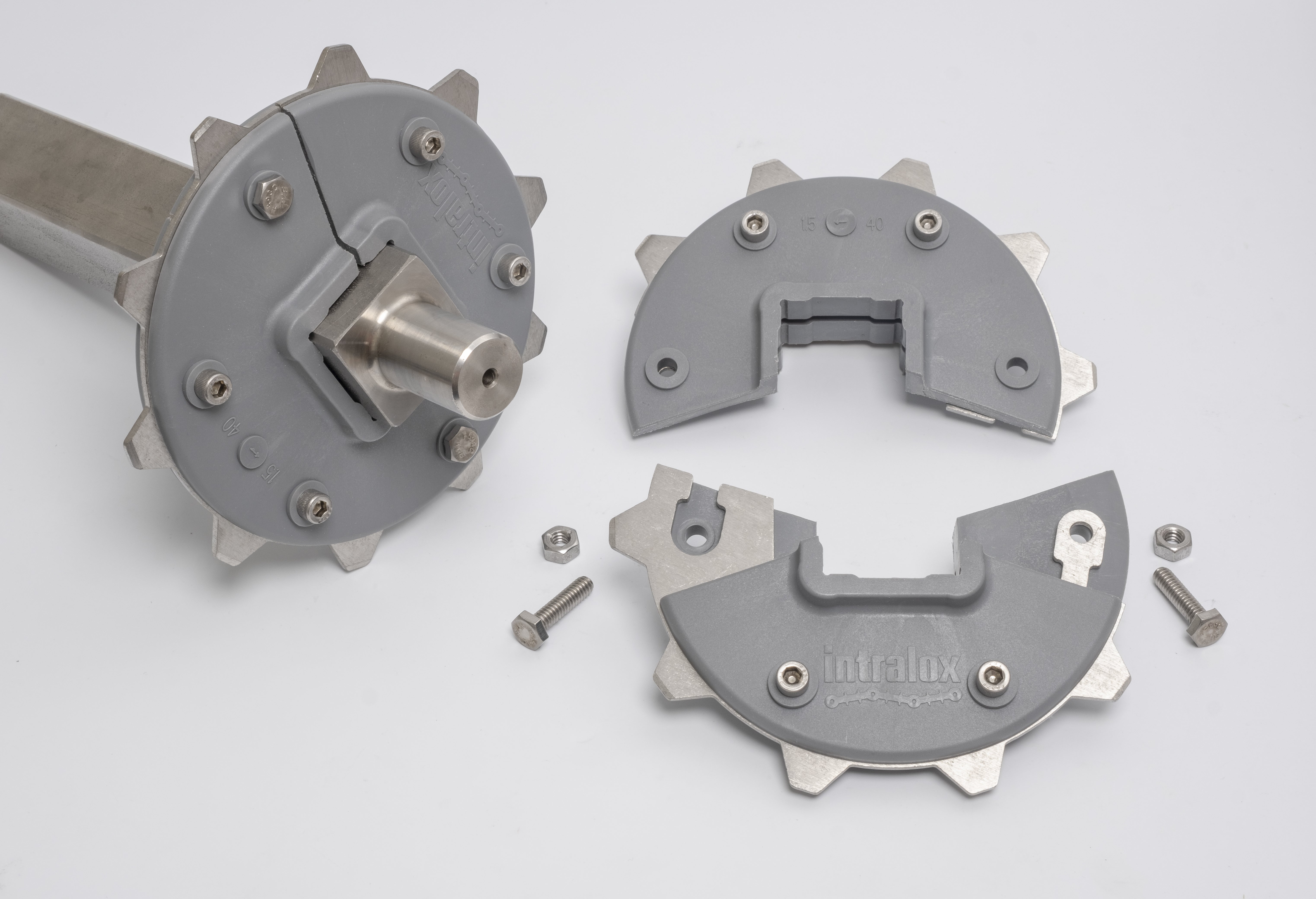

Split Metal Sprocket
Series 400

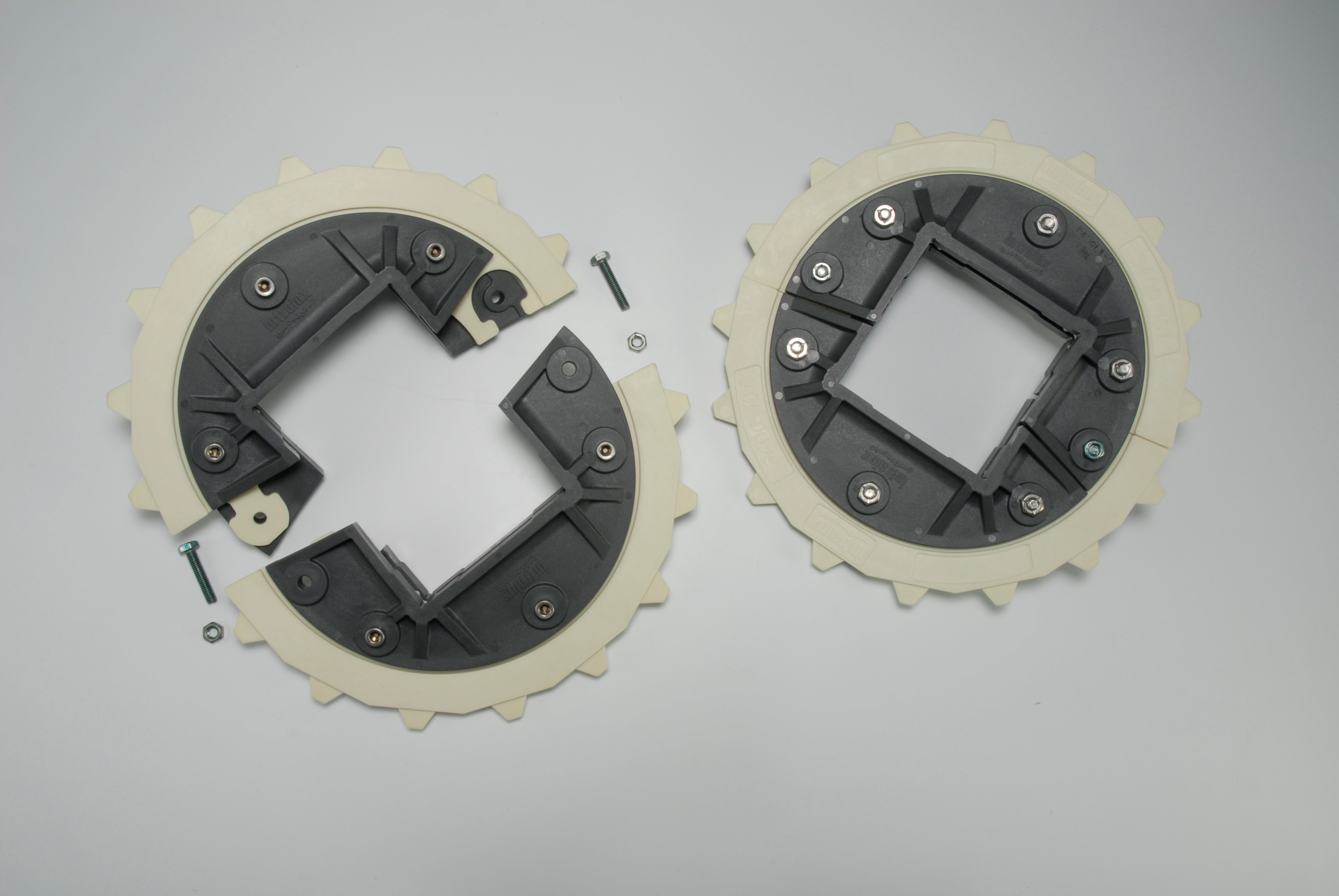

Molded Tooth Plate Split Low Back Tension Polyurethane Composite Sprockets
Series 400
Split Low Back Tension Ultra Abrasion Resistant Polyurethane Sprocket
Series 400

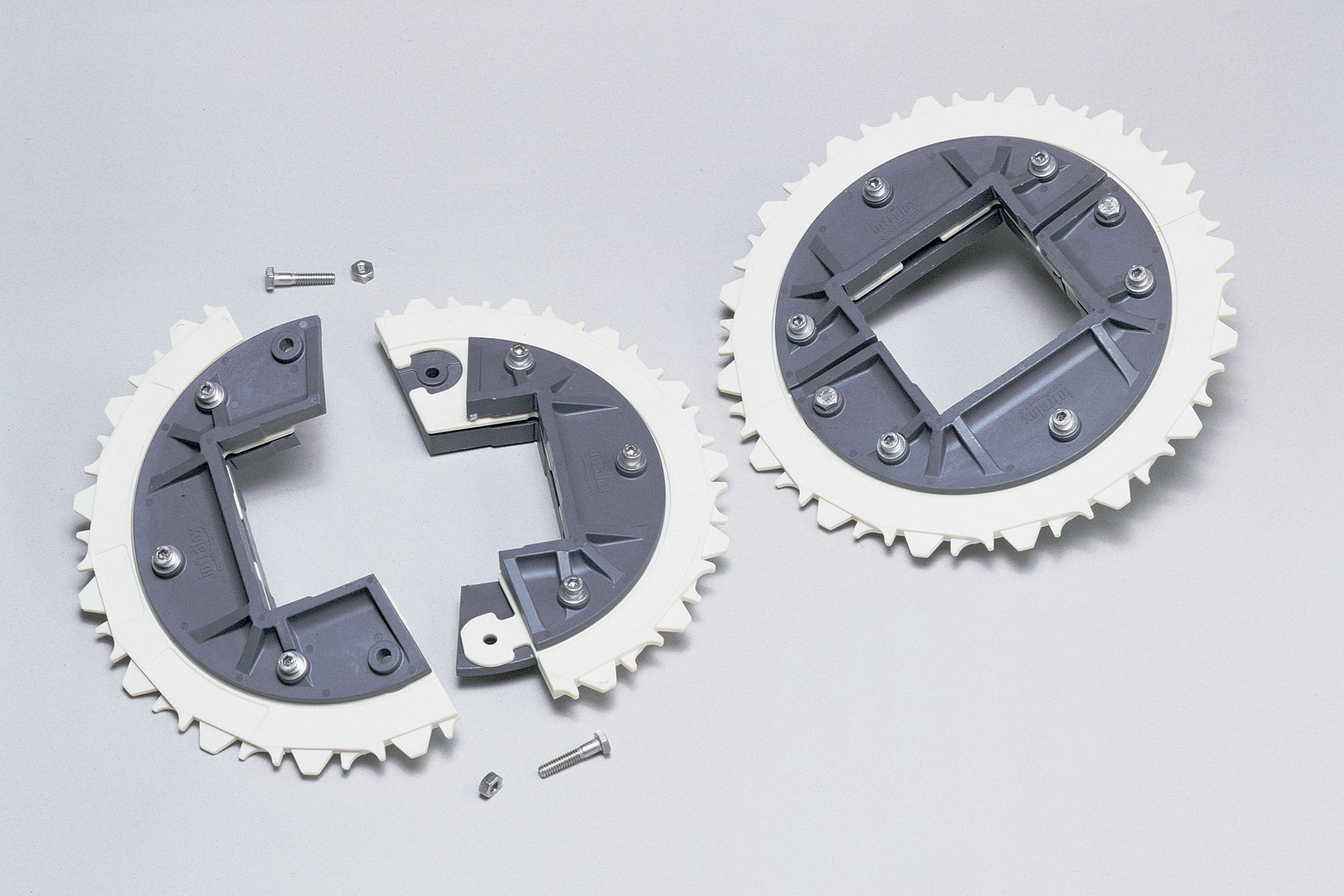

Molded Tooth Plate Split Polyurethane Composite Sprockets
Series 400

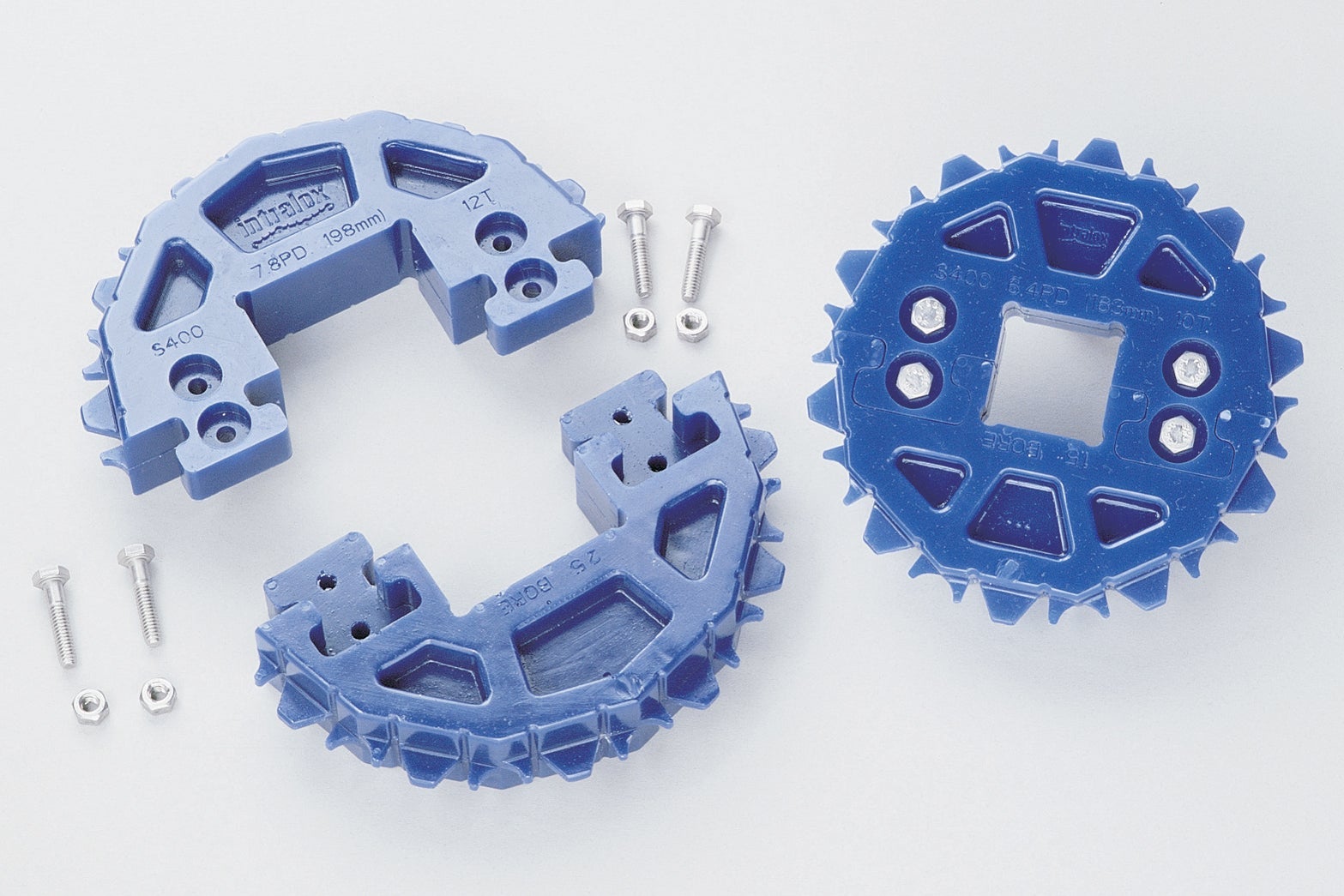

Split Ultra Abrasion Resistant Polyurethane Sprockets
Series 400

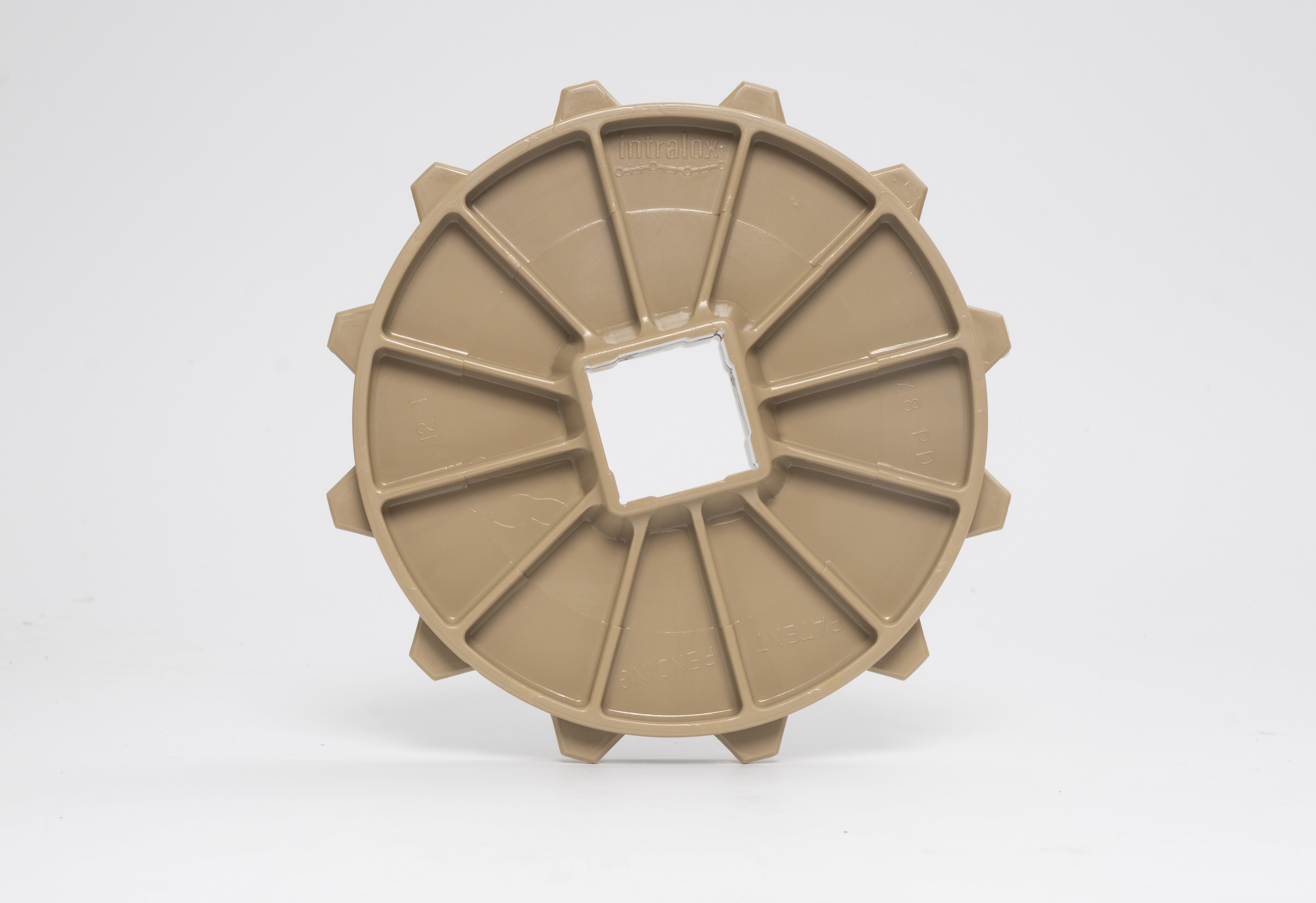

HR Nylon Sprockets
Series 400
HR Nylon Split Sprockets
Series 400
Molded Acetal Sprocket
Series 400

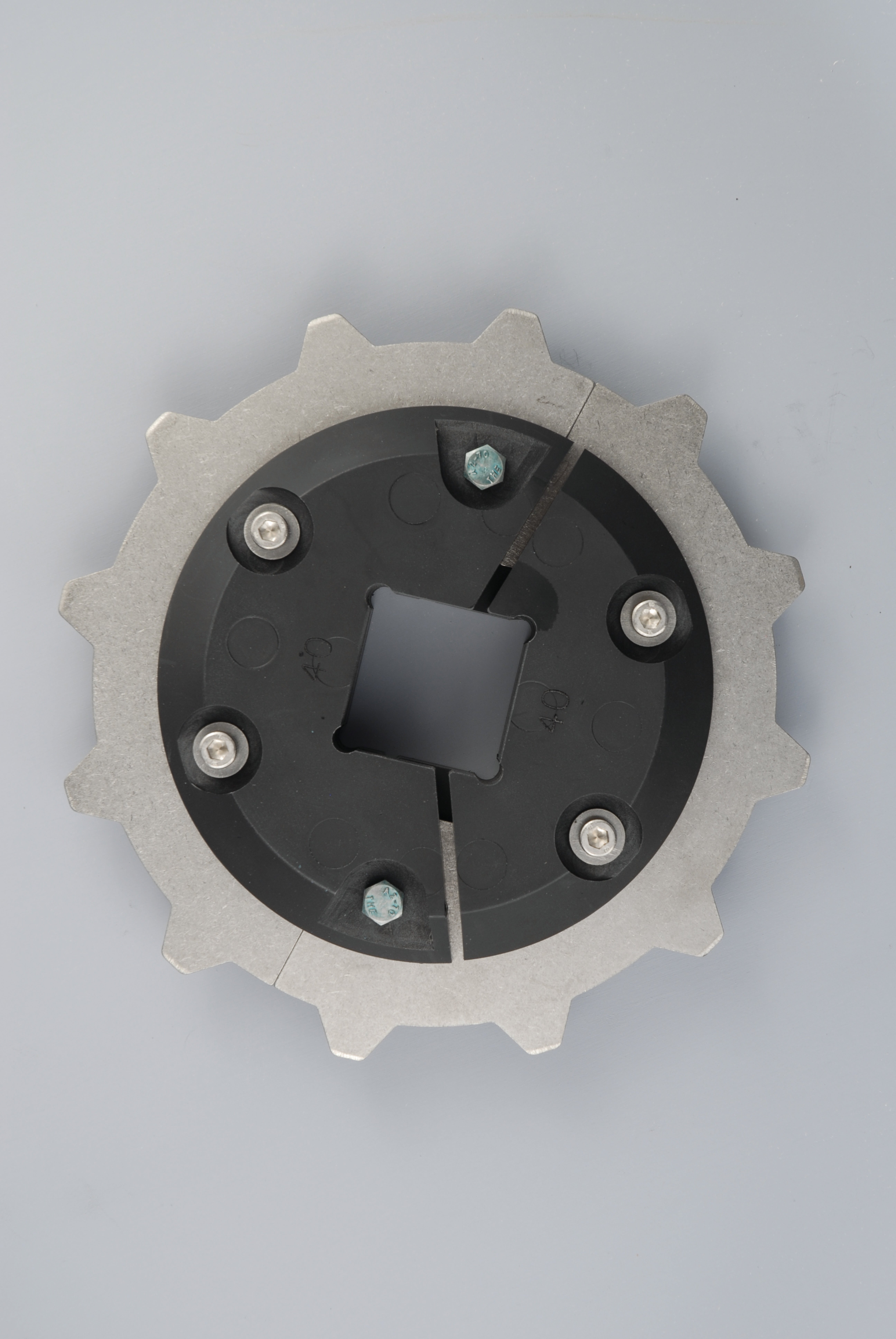

Split Metal with Polyurethane (FDA) Joining Plates Reduced Clearance Sprockets
Series 400
Molded Polyurethane Sprocket
Series 400

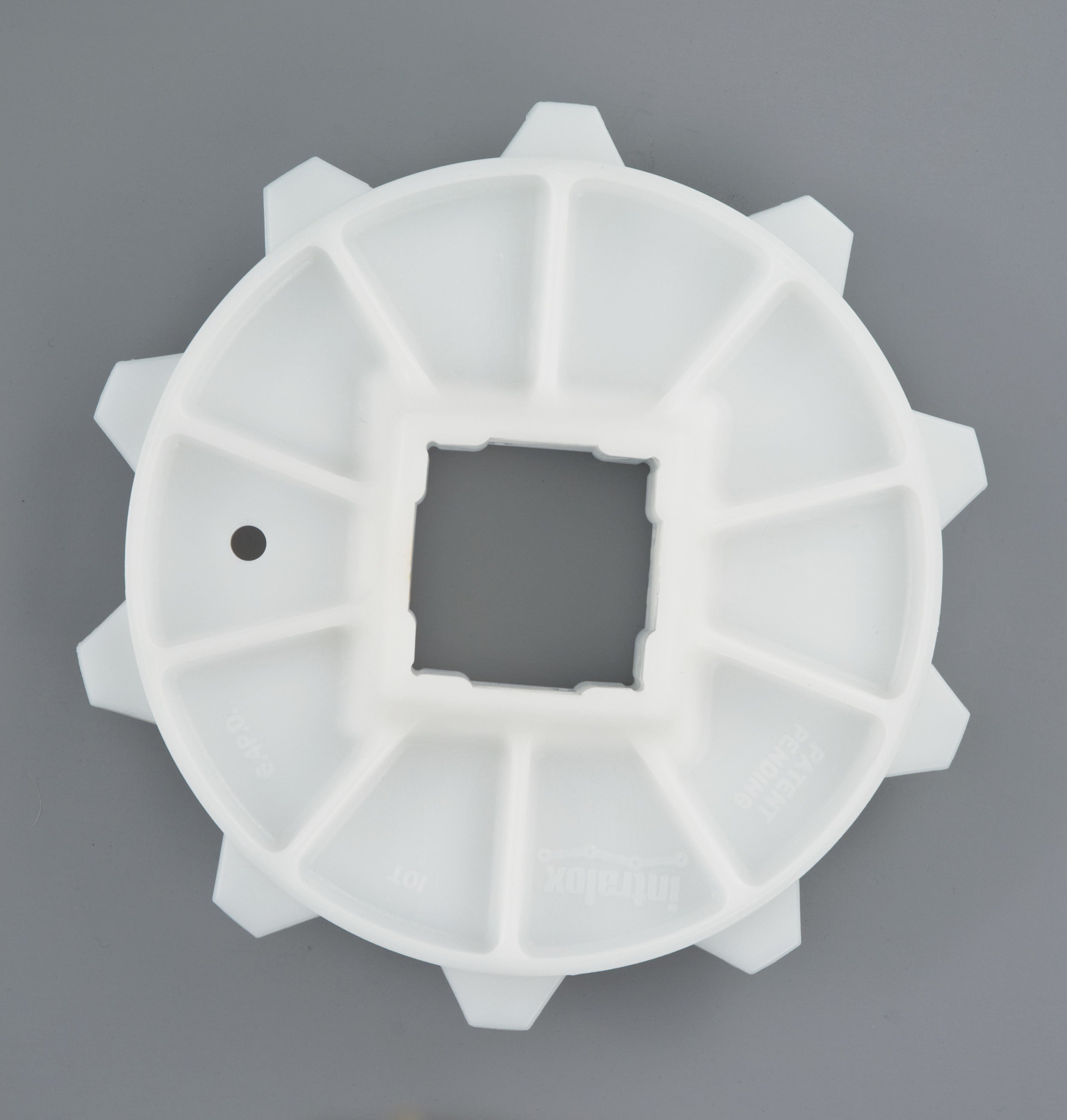

Molded Polypropylene Sprocket
Series 400

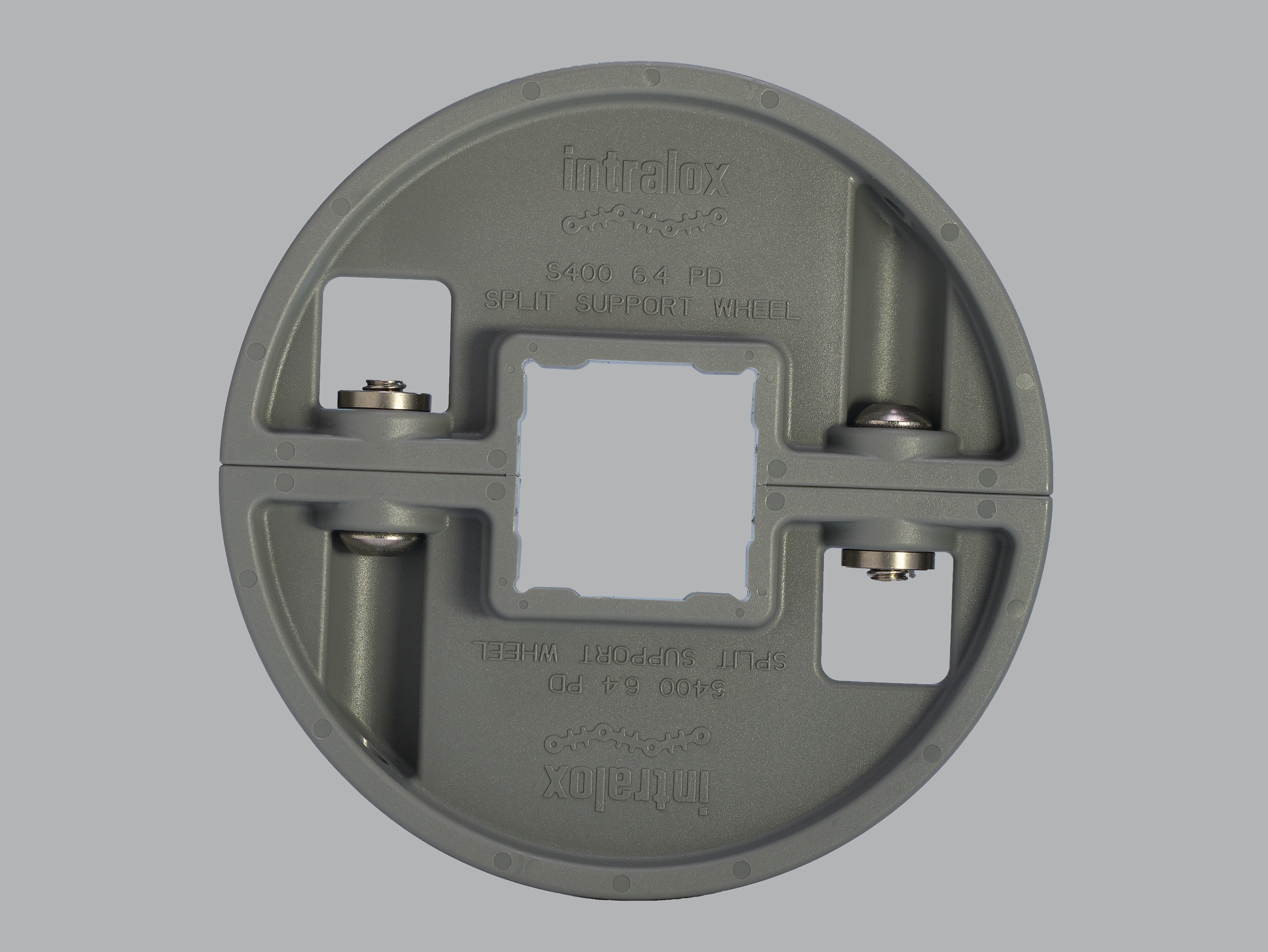

Split Support Wheel
Series 400

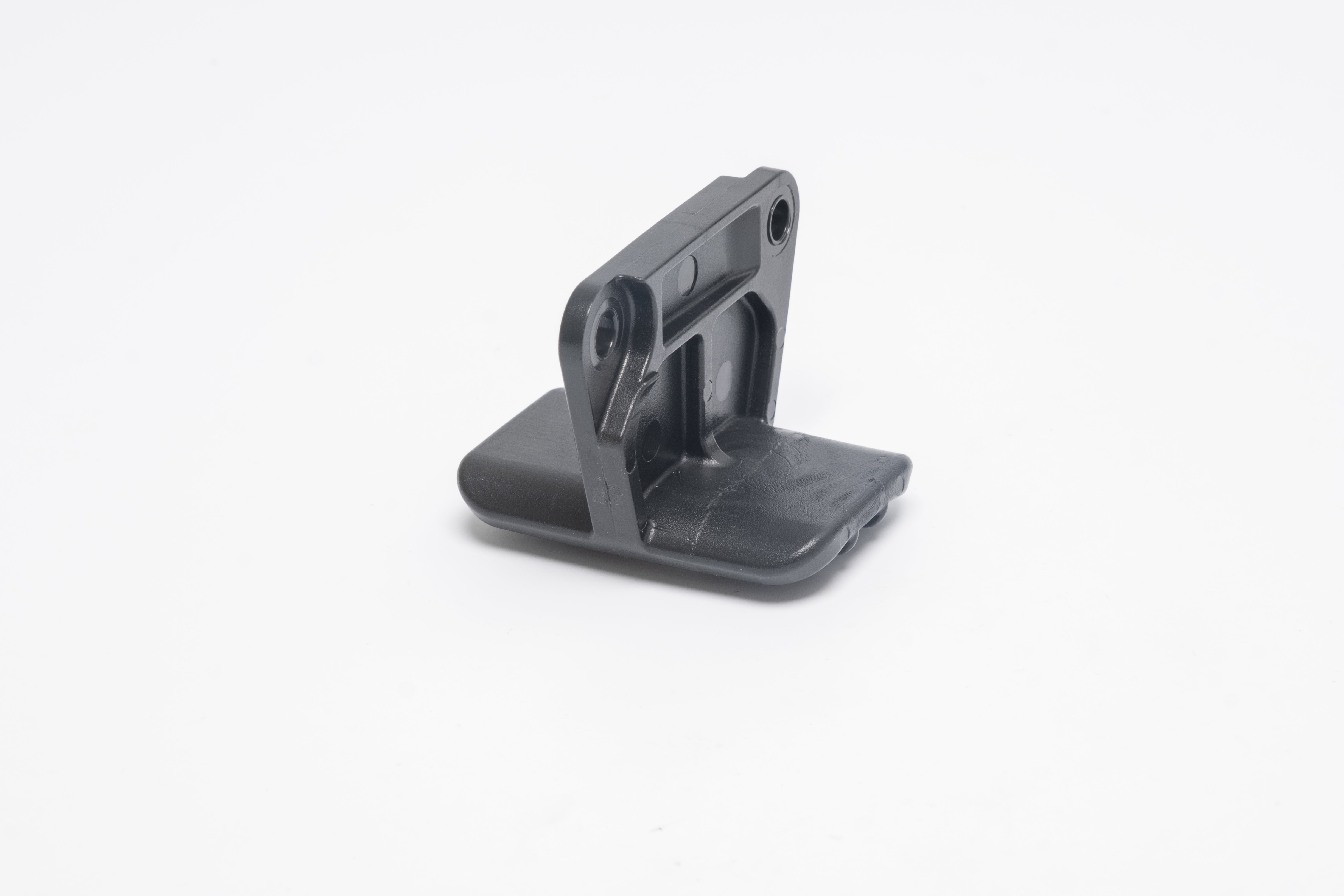

Hold Down Tabs
Series 400

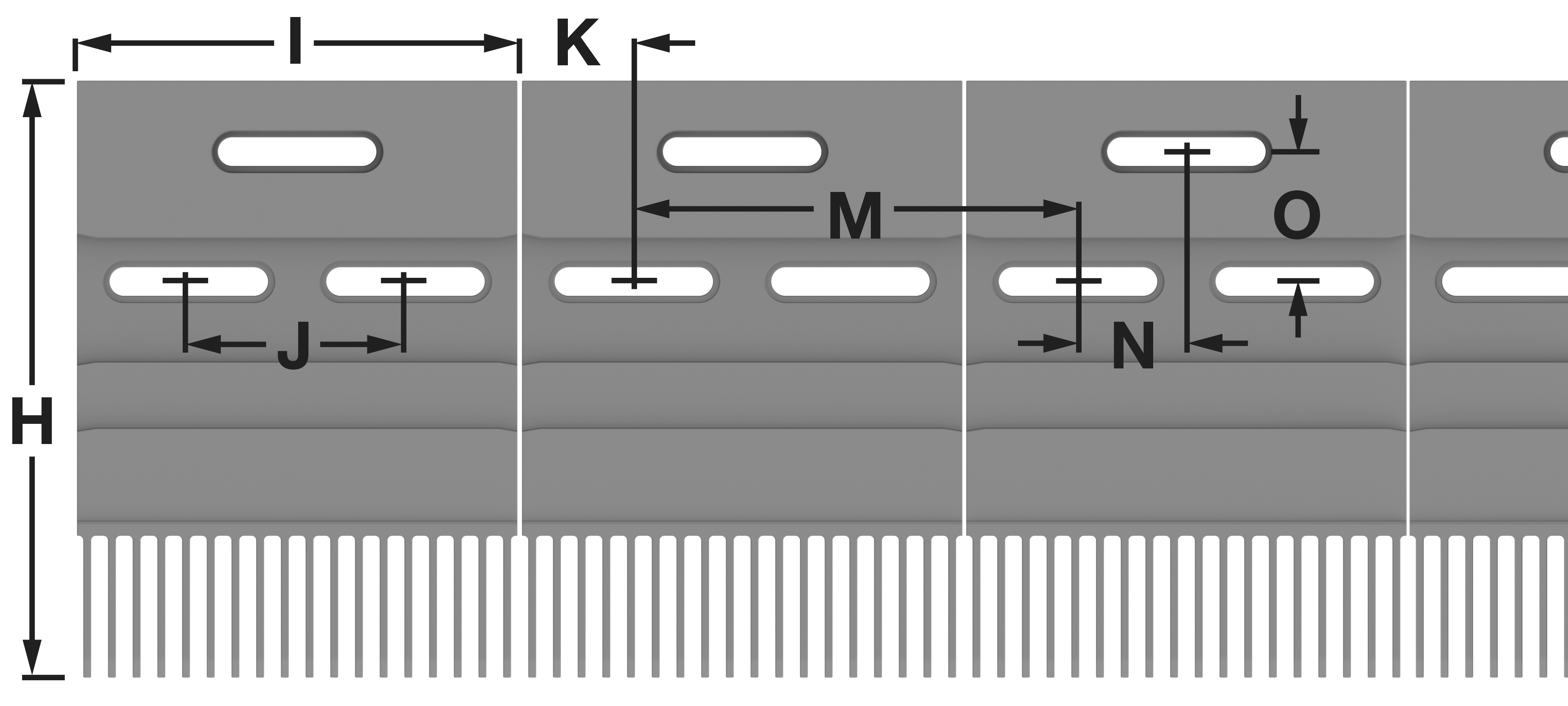

Dimensional Requirements for S400 Self-Clearing Finger Transfer Plate Installation
Series 400
Two-Material Finger Transfer Plates
Series 400
Sideguards
Series 400

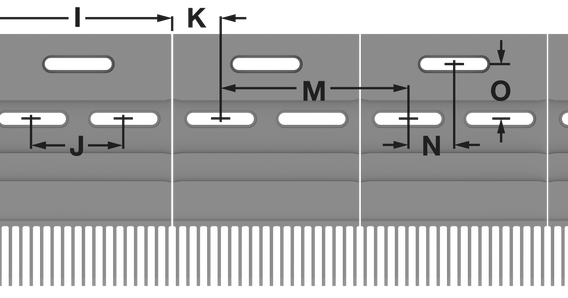

Finger Transfer Plates
Series 400
Self-Clearing Finger Transfer Plates
Series 400

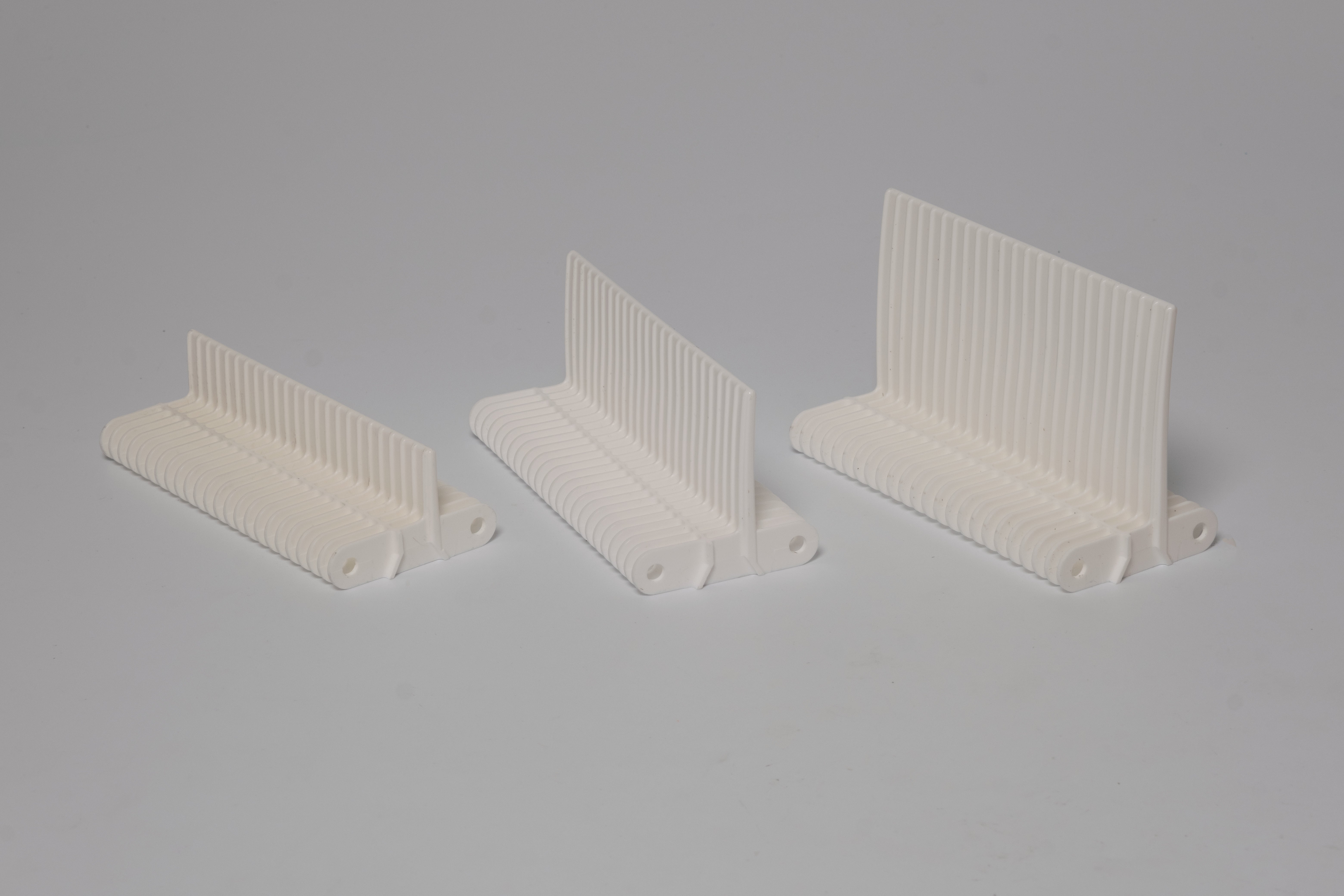

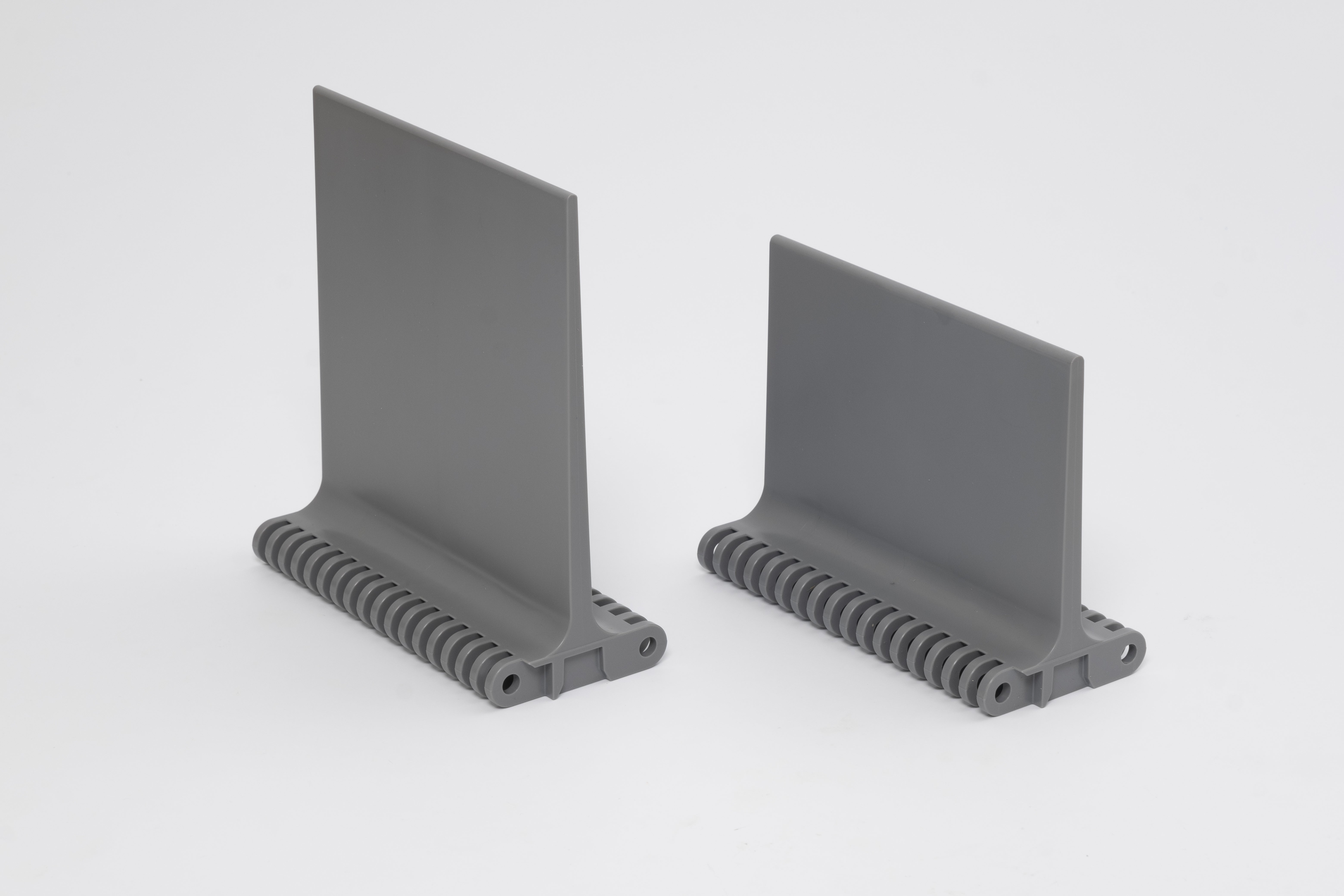

Open Hinge Base Flights (Streamline/No-Cling)
Series 400

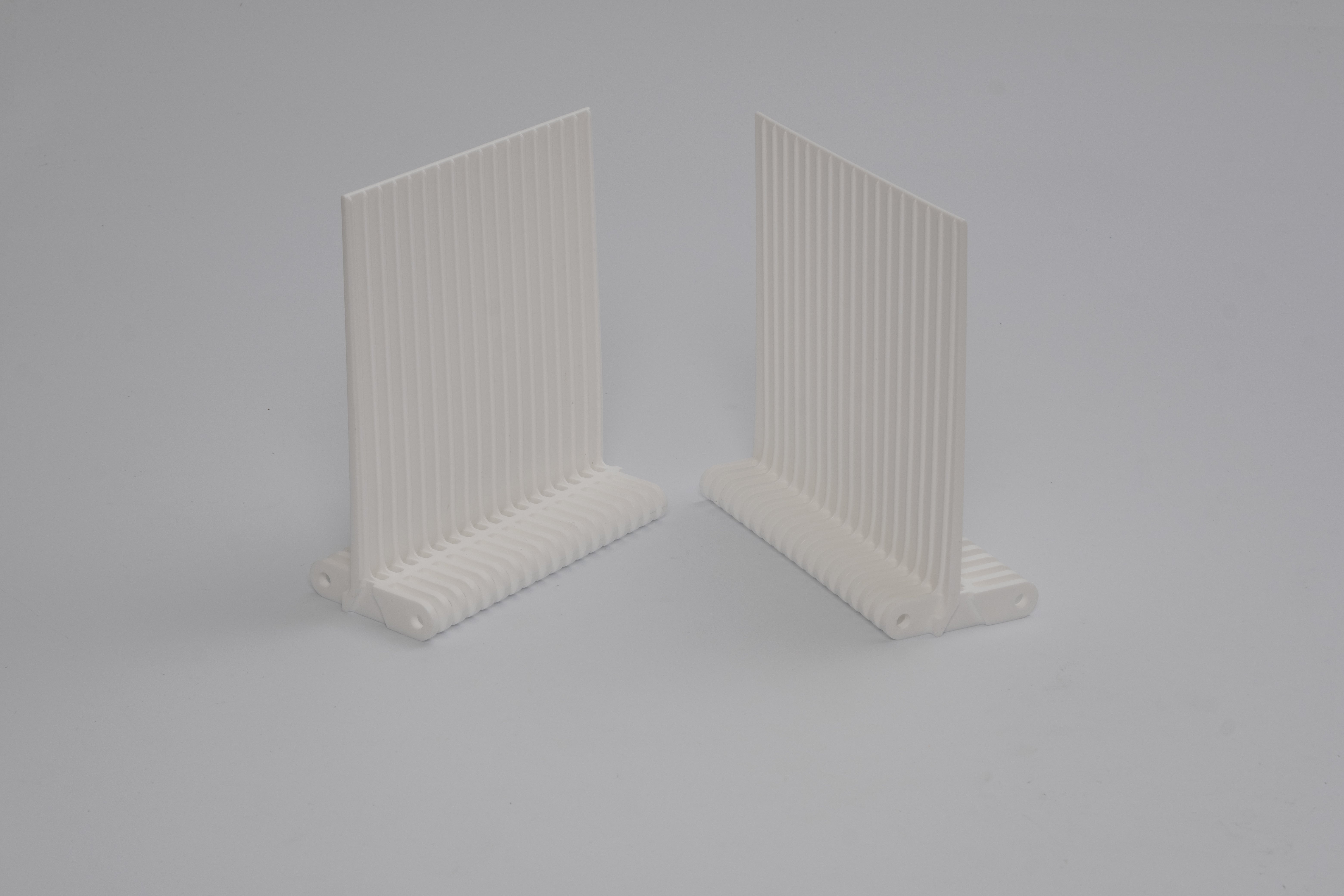

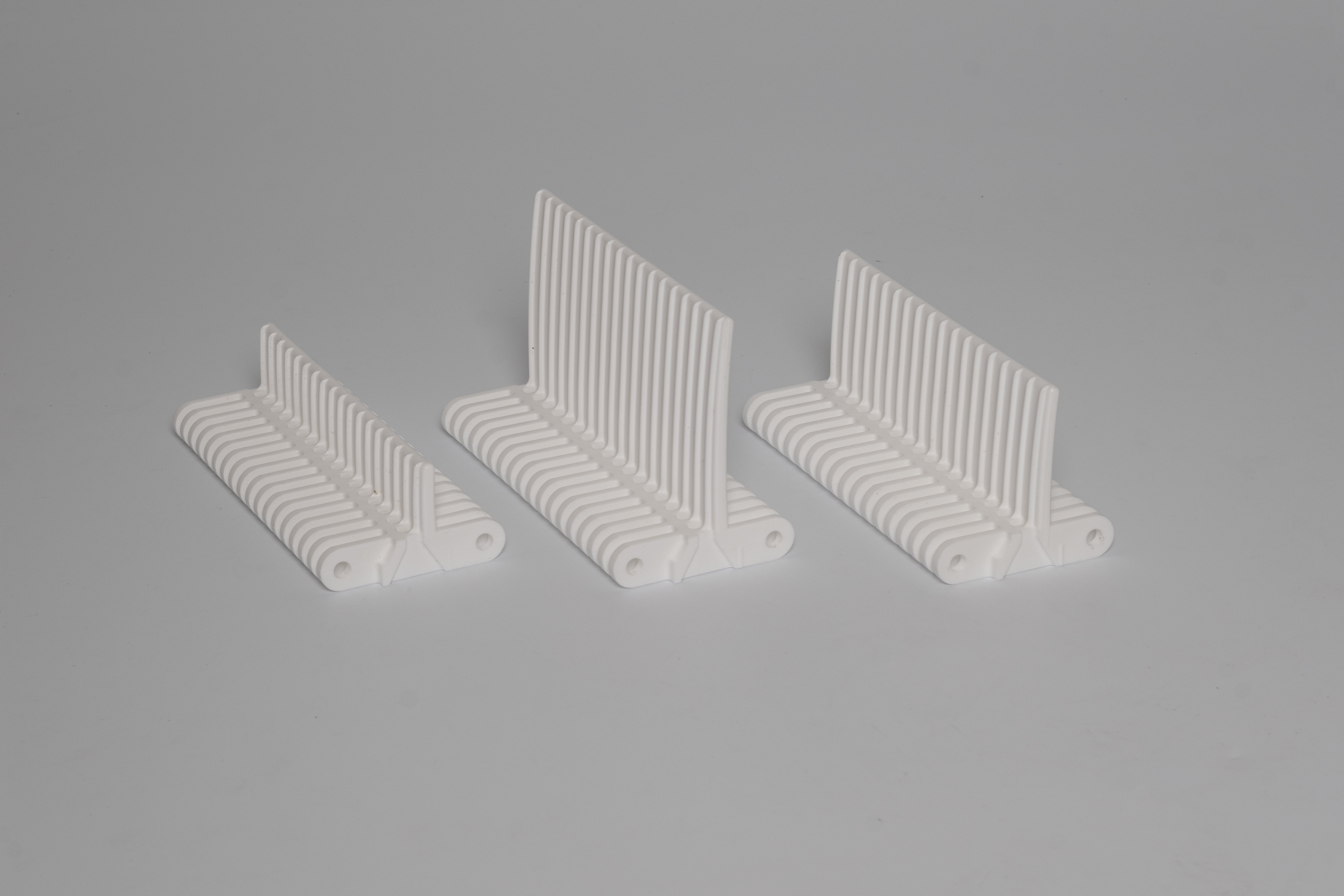

Flush Grid Base Flights (Double No-Cling)
Series 400

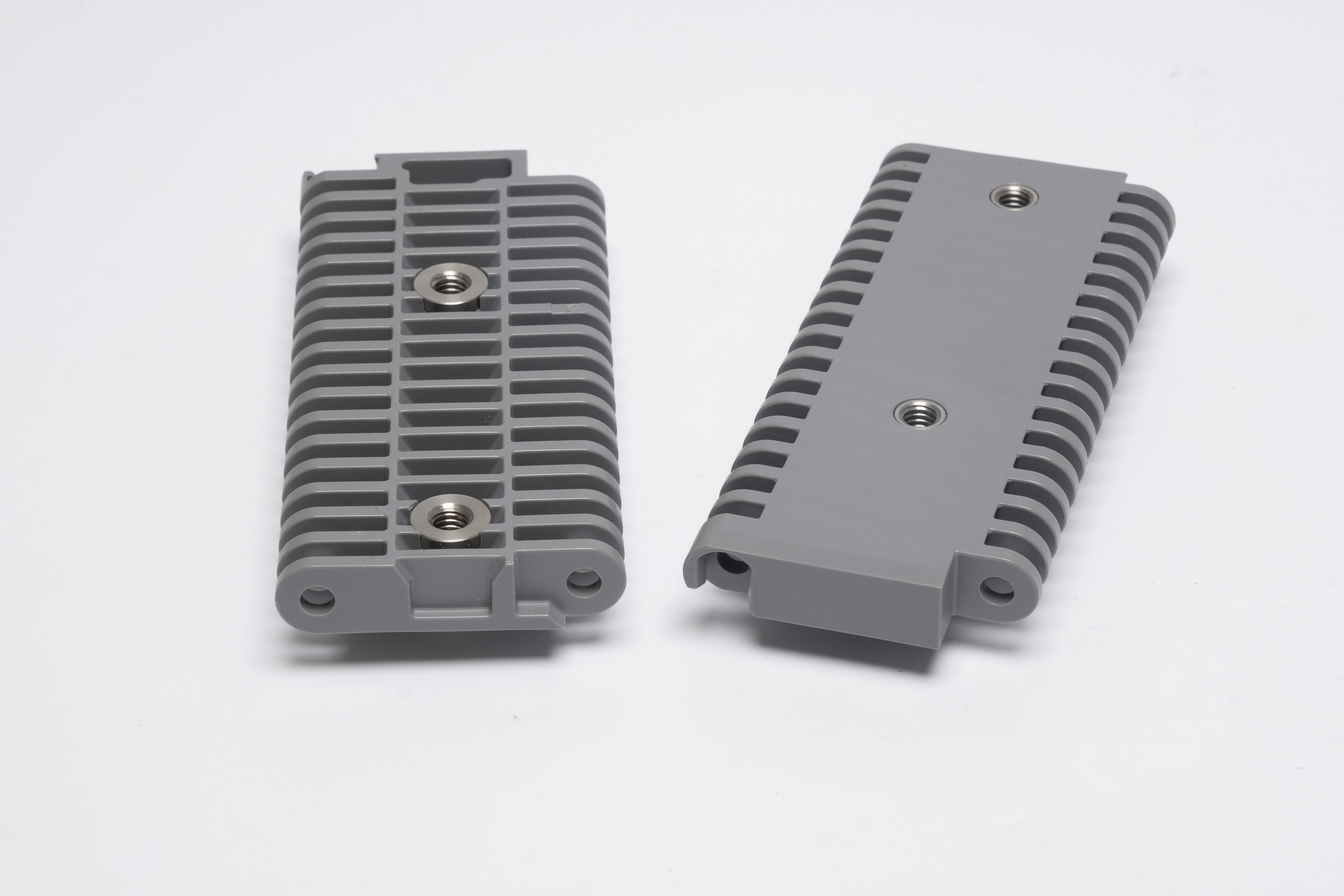

Insert Nuts
