| in | mm | |
| Pitch | 2.00 | 50.8 |
| Minimum Width | 2 | 51 |
| Width Increments | 0.25 | 6.4 |
| Opening Size (approximate) | 0.47 × 0.18 | 11.9 × 4.6 |
| Open Area | 30% | |
| Product Contact Area | 40% | |
| Hinge Style | Open | |
| Rod Retention; Rod Type | Second headed; headed | |
- Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
- Large, open area improves airflow, drainage, and cleanability.
- Shares heavy-duty rating with other belts in this series.
- Has double-headed hinge rods, so the belt edge is not fully flush.
- Each belt material has a default rod material. Other rod materials are available. Intralox can help identify the best belt and rod material combination for your application.
- Detailed material information is provided in Product Line.
- Flights and sideguards are available.
- For more hygienic options, see S800 and S1600.
| Belt Material | Default Rod Material, Diameter 0.24 in (6.1 mm) | Belt Strength | Temperature Range (continuous) | Belt Mass | |||
|---|---|---|---|---|---|---|---|
| lbf/ft | N/m | °F | °C | lb/ft² | kg/m² | ||
| Polypropylene | Polypropylene | 1,550 | 22,600 | 34 to 220 | 1 to 104 | 1.16 | 5.66 |
| Polyethylene | Polyethylene | 950 | 13,900 | -50 to 150 | -46 to 66 | 1.24 | 6.06 |
| Document Name | Document Type | File Type | File Size |
|---|---|---|---|
| S400_OpenHinge_4inch_(Imperial).dxf | CAD Drawing | DXF | 940 KB |
| S400_OpenHinge_4inch_(Metric).dxf | CAD Drawing | DXF | 941 KB |

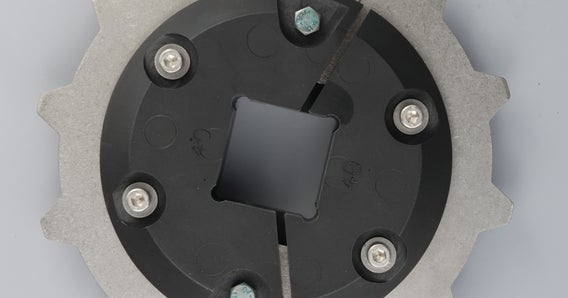

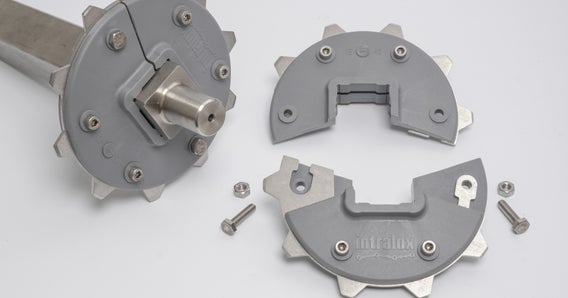

Split Metal Sprocket
Series 400

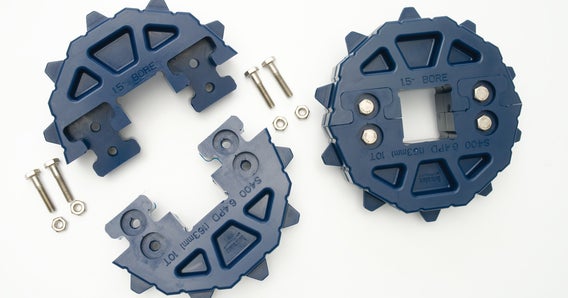

Split Low Back Tension Ultra Abrasion Resistant Polyurethane Sprocket
Series 400

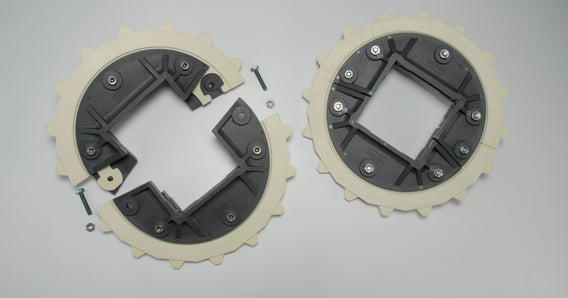

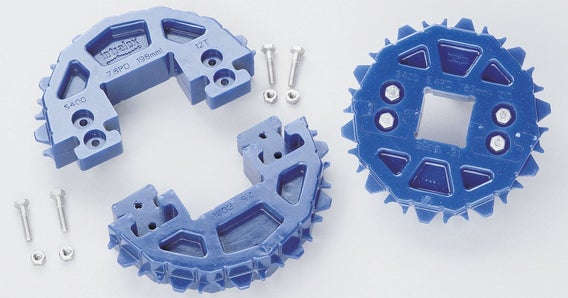

Molded Tooth Plate Split Low Back Tension Polyurethane Composite Sprockets
Series 400
Molded Tooth Plate Split Polyurethane Composite Sprockets
Series 400
Split Ultra Abrasion Resistant Polyurethane Sprockets
Series 400

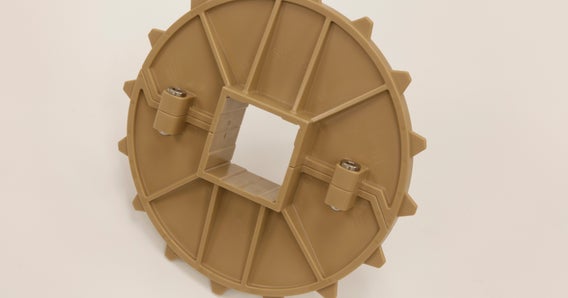

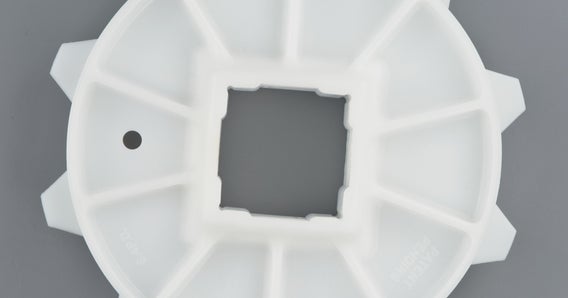

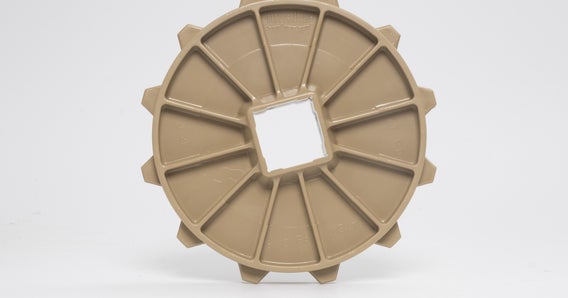

HR Nylon Sprockets
Series 400
HR Nylon Split Sprockets
Series 400
Molded Sprocket
Series 400

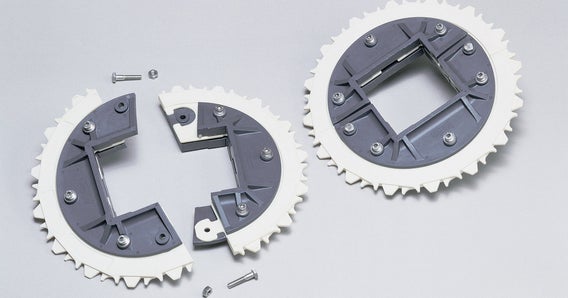

Split Metal with Polyurethane (FDA) Joining Plates Reduced Clearance Sprockets
Series 400

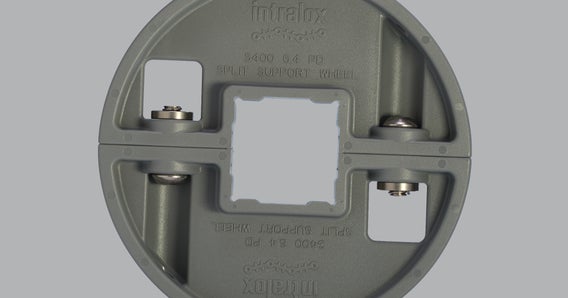

Split Support Wheel
Series 400

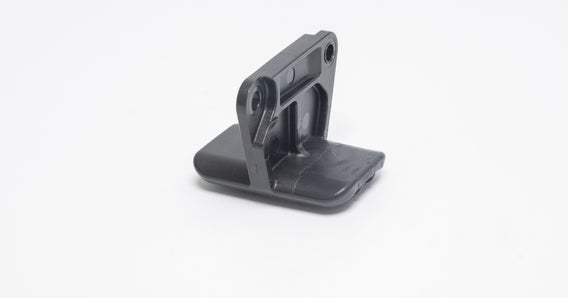

Hold Down Tabs
Series 400

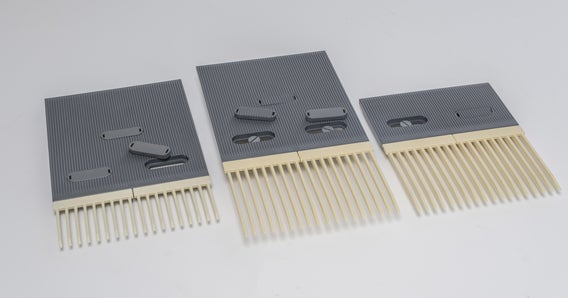

Two-Material Finger Transfer Plates
Series 400

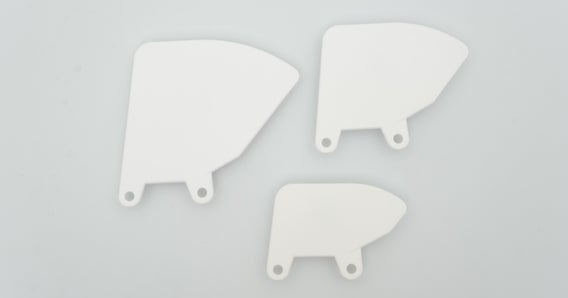

Sideguards
Series 400

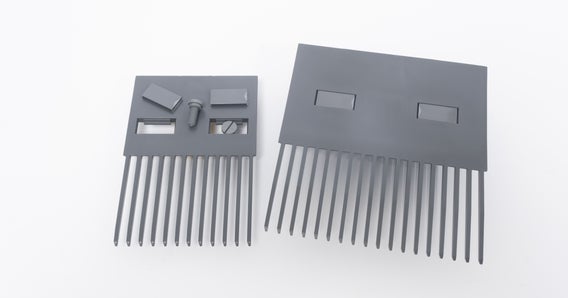

Finger Transfer Plates
Series 400

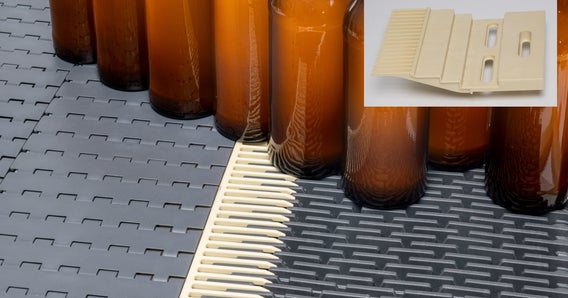

Self-Clearing Finger Transfer Plates
Series 400

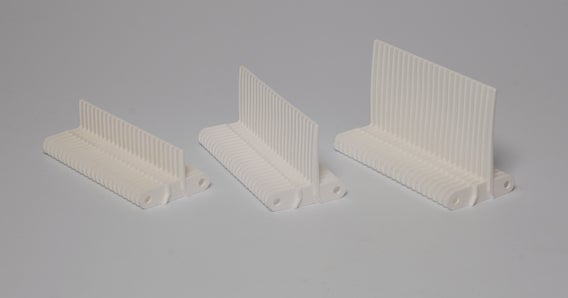

Open Hinge Base Flights (Streamline/No-Cling)
Series 400

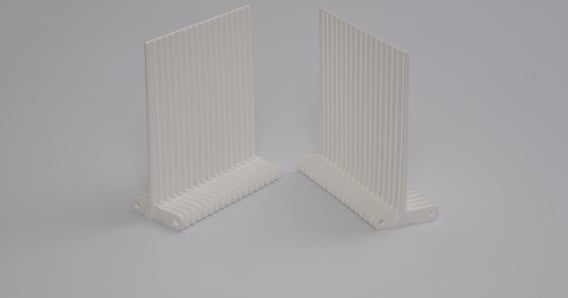

Flush Grid Base Flights (Double No-Cling)
Series 400

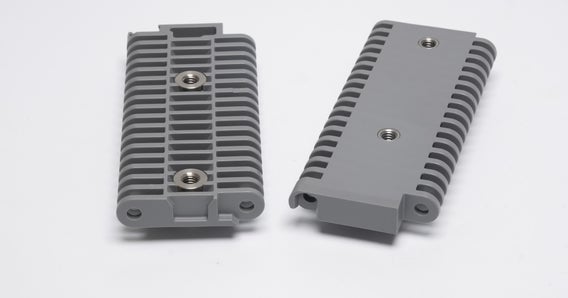

Insert Nuts
Series 400

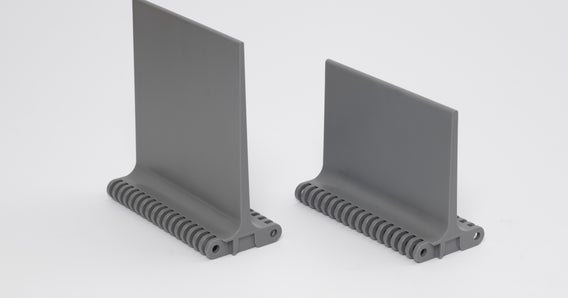

Flat Top Base Flights (Streamline)
Series 400

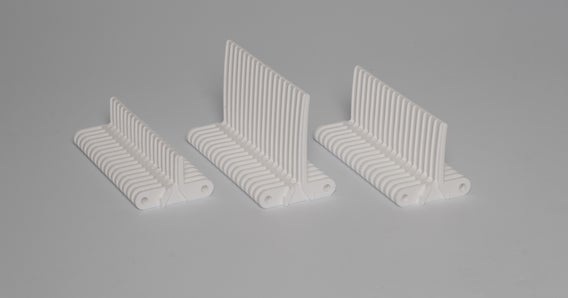

Flush Grid Base Flights (Streamline/No-Cling)
