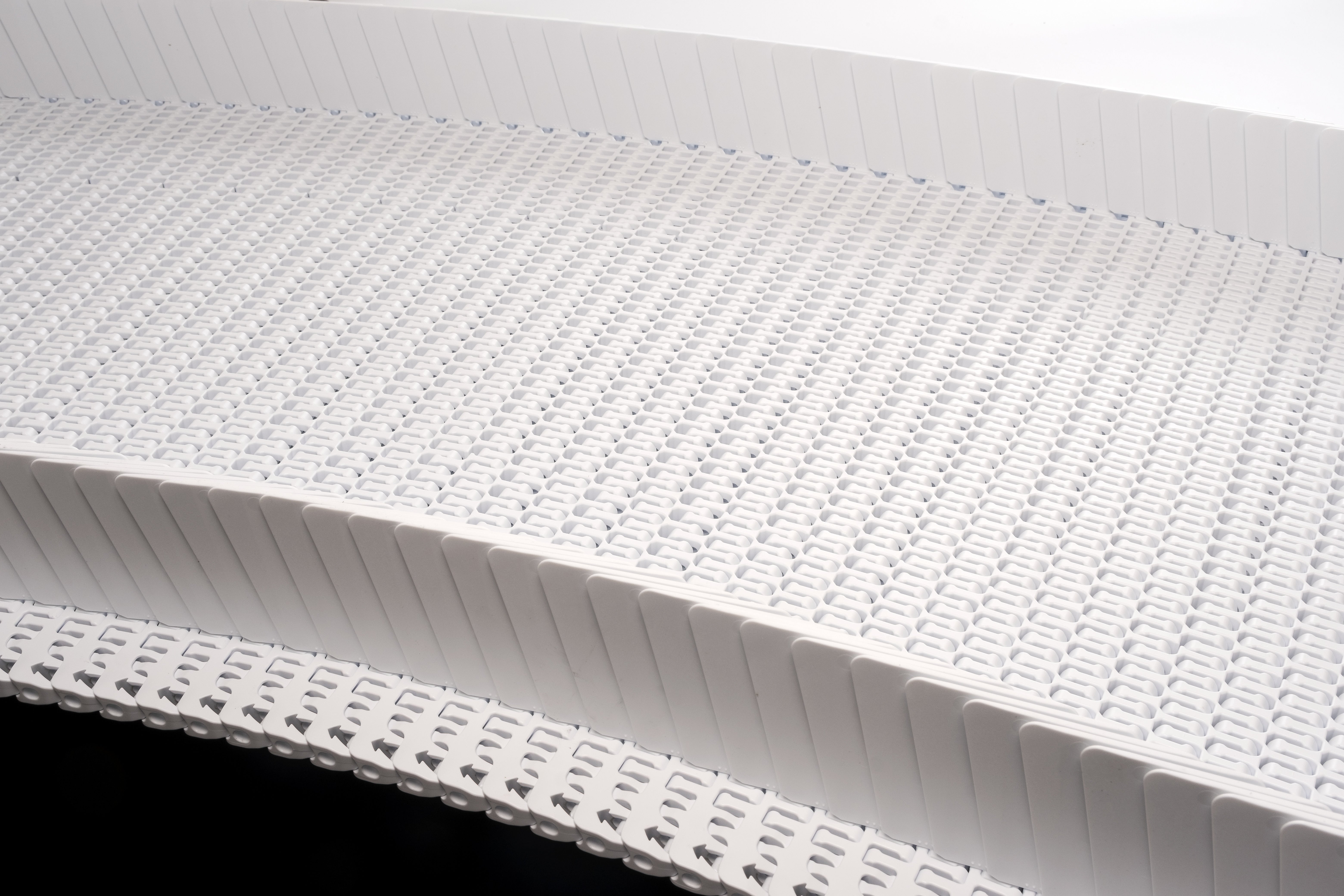

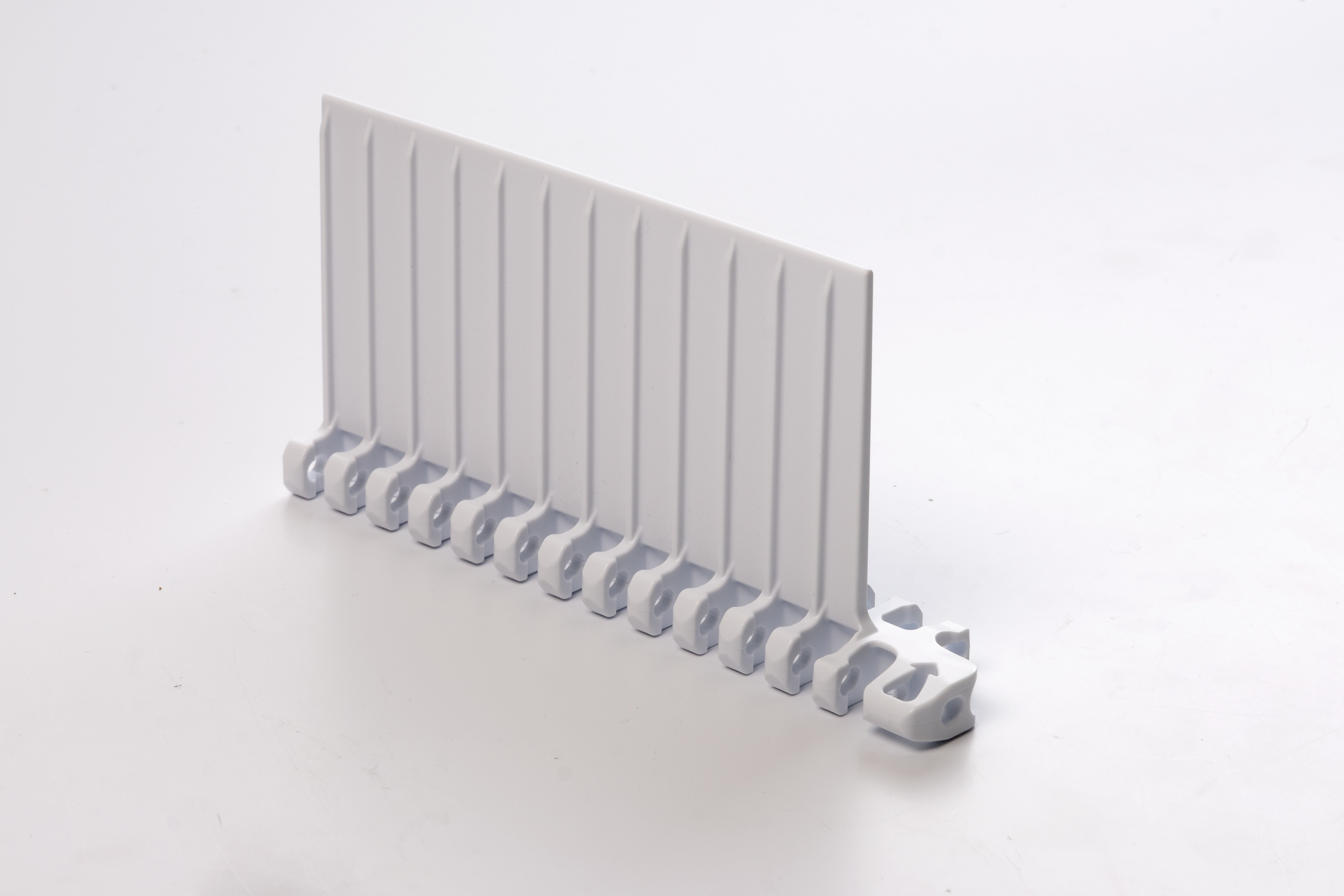

Streamline cleaning and accelerate cooling with the Intralox Series 2400 Radius Flush Grid (2.2) belt.

This belt has a large open area for easy cleaning and quick product cooling, and its modular plastic design ensures straightforward installation and maintenance. Available in multiple materials for diverse conditions, this belt adds value across a range of applications and industries—especially bakery.

  • 42% open area provides even airflow for fast product cooling
  • Minimum turn radius of 2.2 times belt width
  • Available with hold down guides
inmm
Pitch1.0025.4
Minimum Width4102
Width Increments0.5012.7
Opening Size (approximate)0.35 × 0.308.9 × 7.6
Open Area42%
Product Contact Area23%
Hinge StyleOpen
Rod Retention; Rod TypeOccluded edge; unheaded

  • Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
  • Belt openings pass straight through the belt to simplify cleaning.
  • Each belt material has a default rod material. Other rod materials are available. Intralox can help identify the best belt and rod material combination for your application.
  • Detailed material information is provided in Product Line.

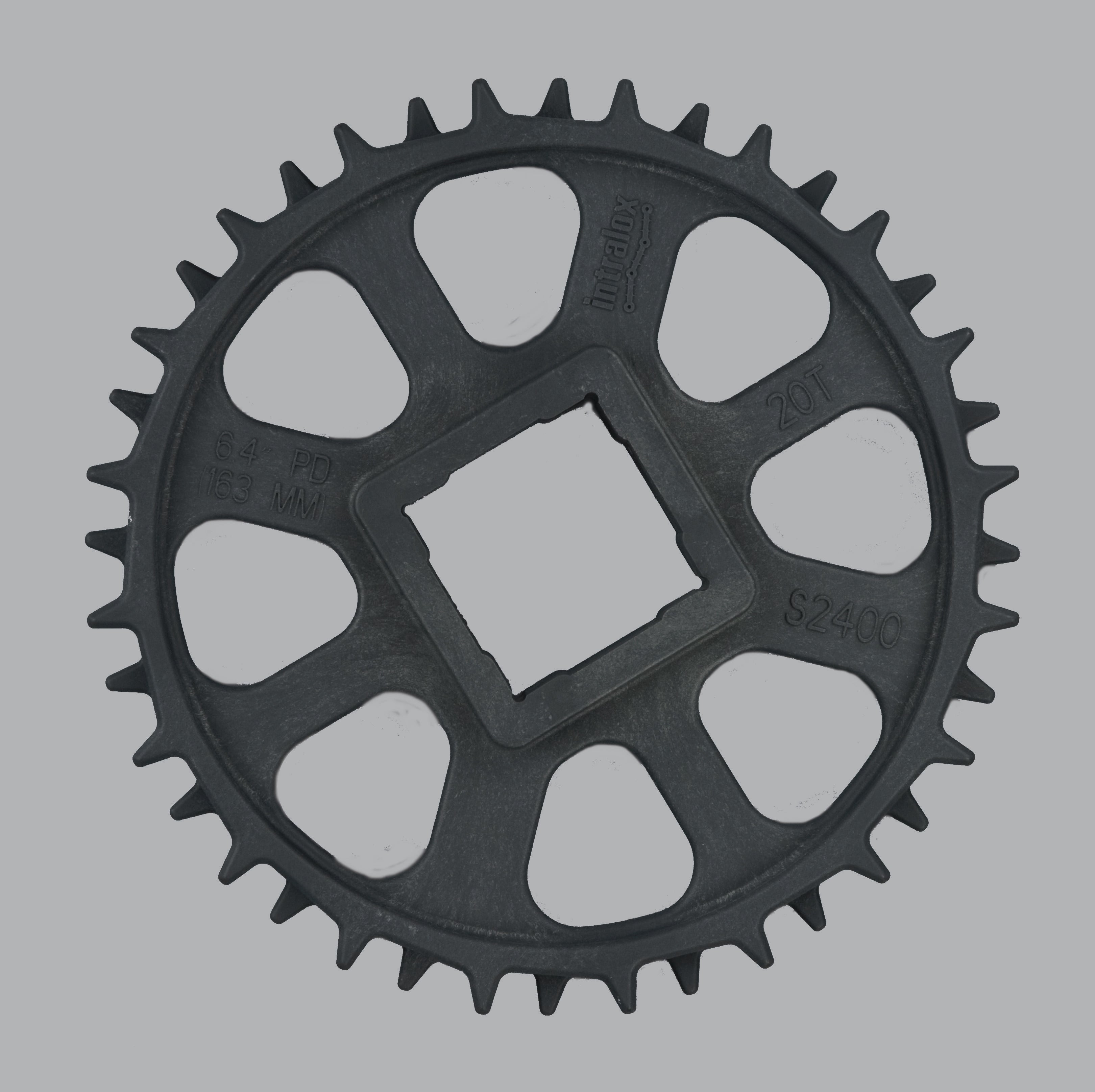

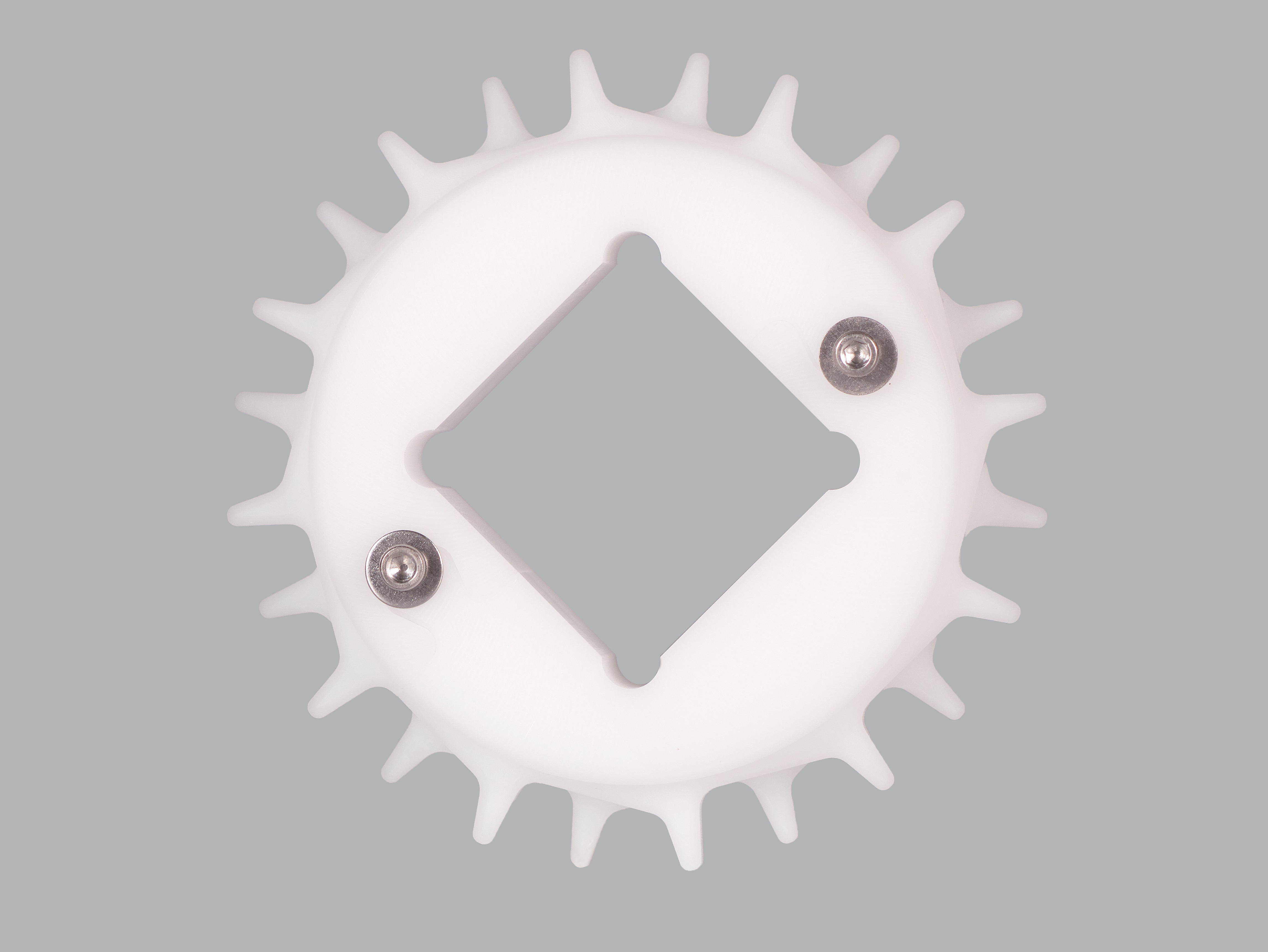

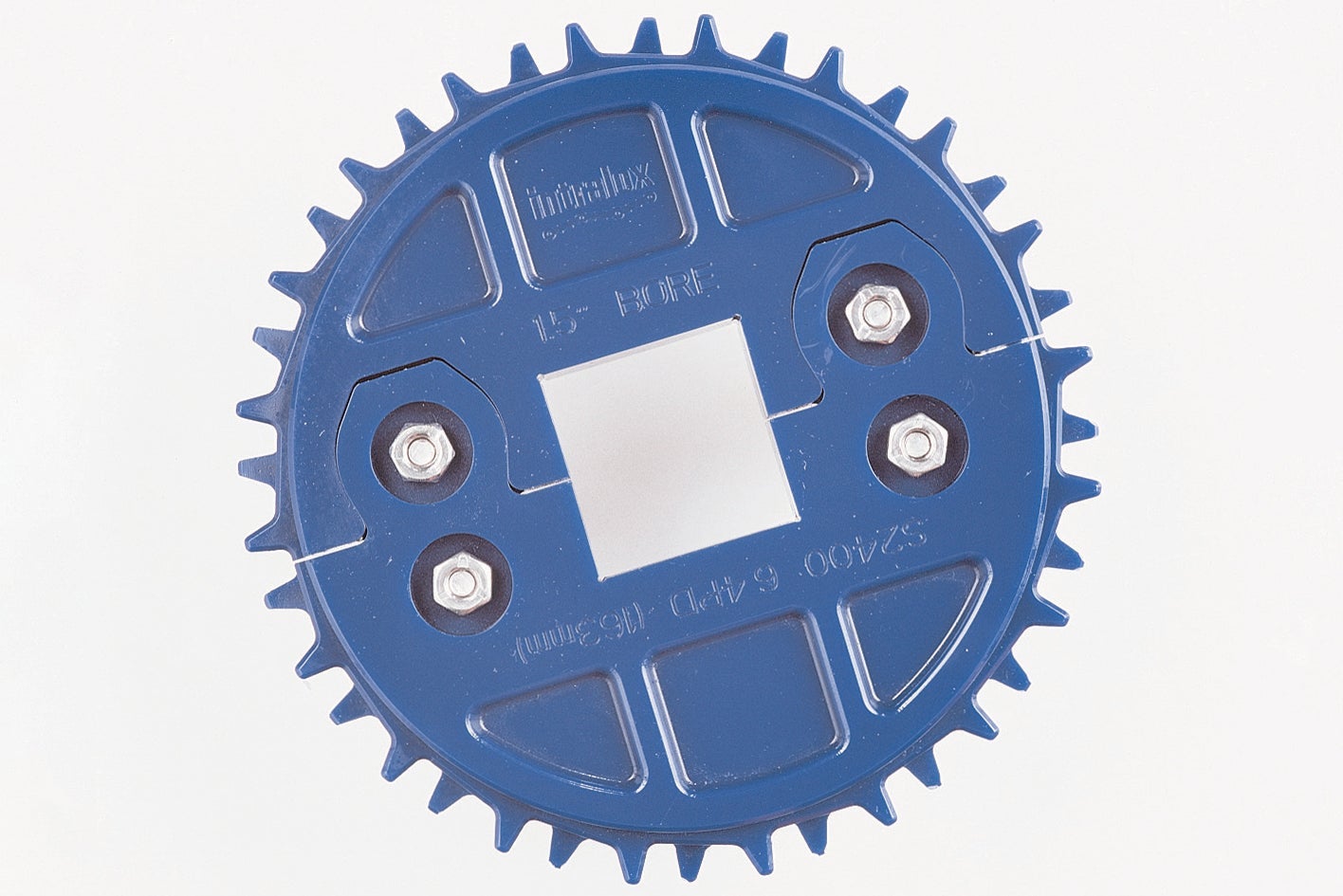

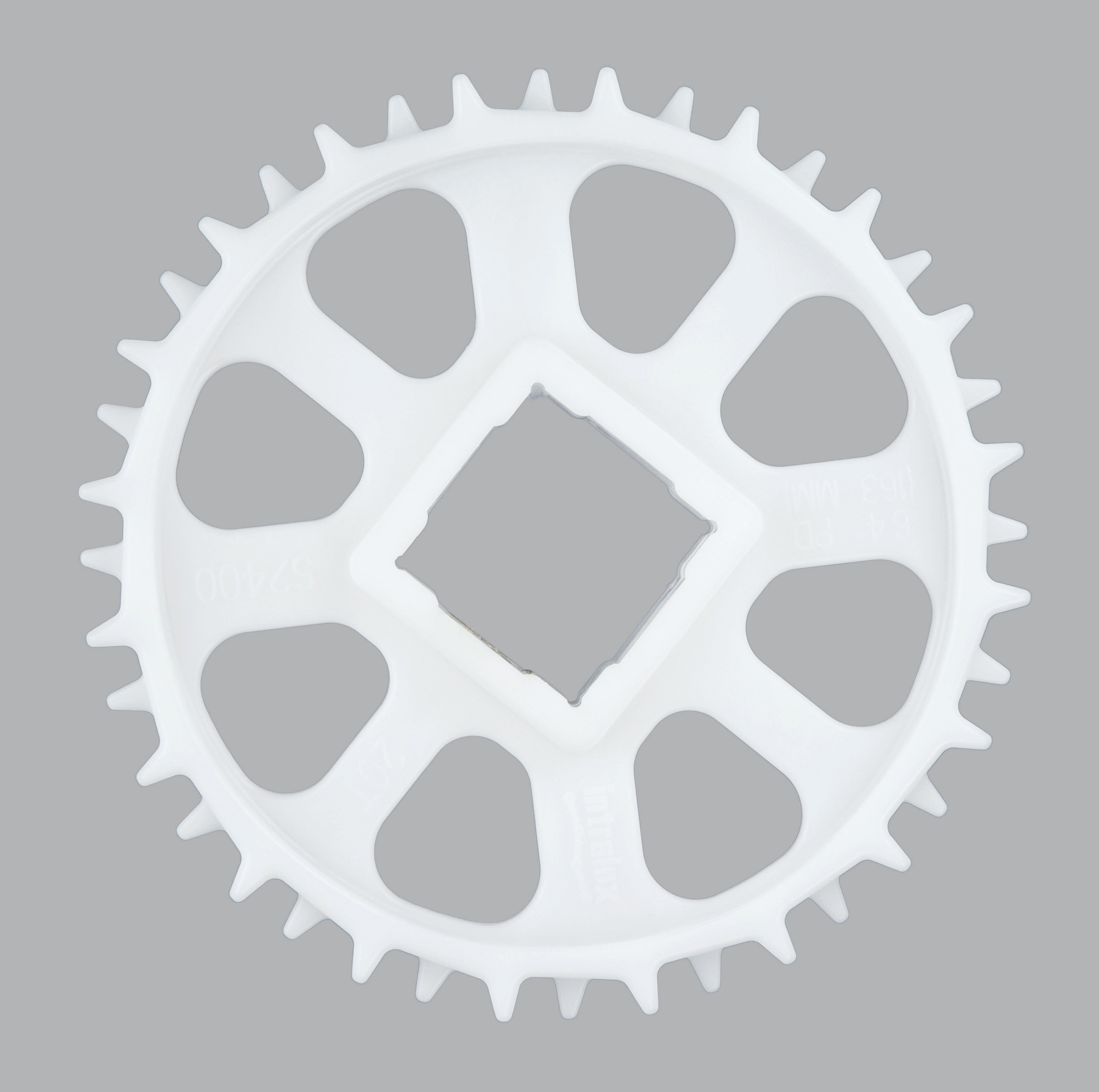

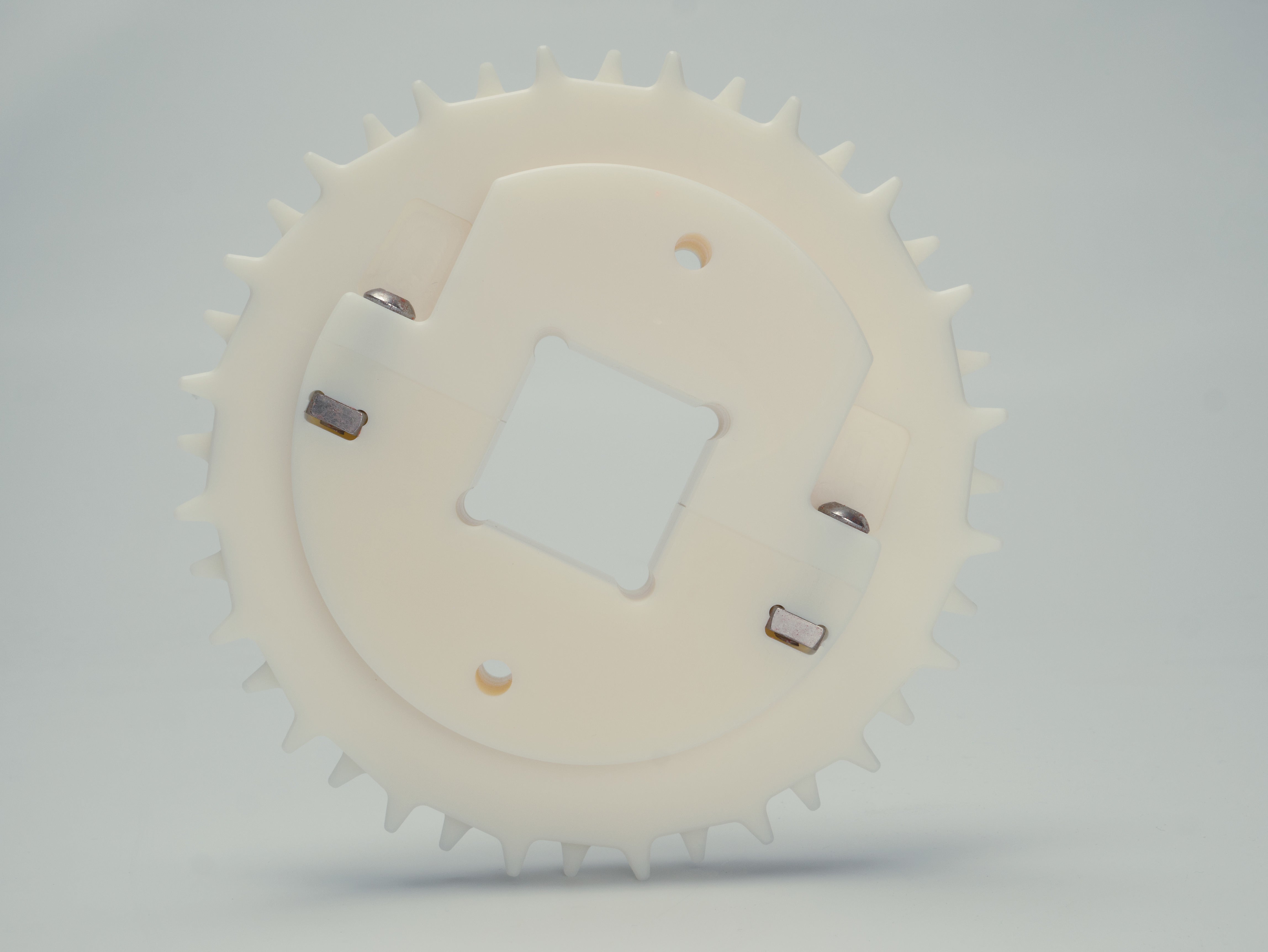

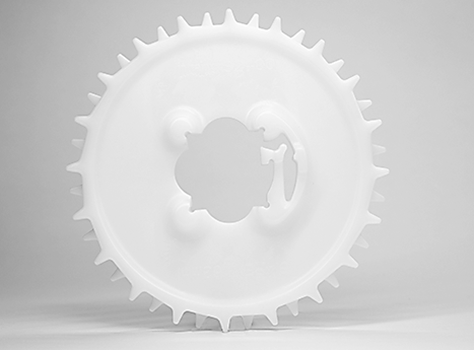

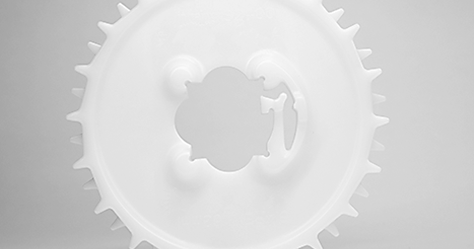

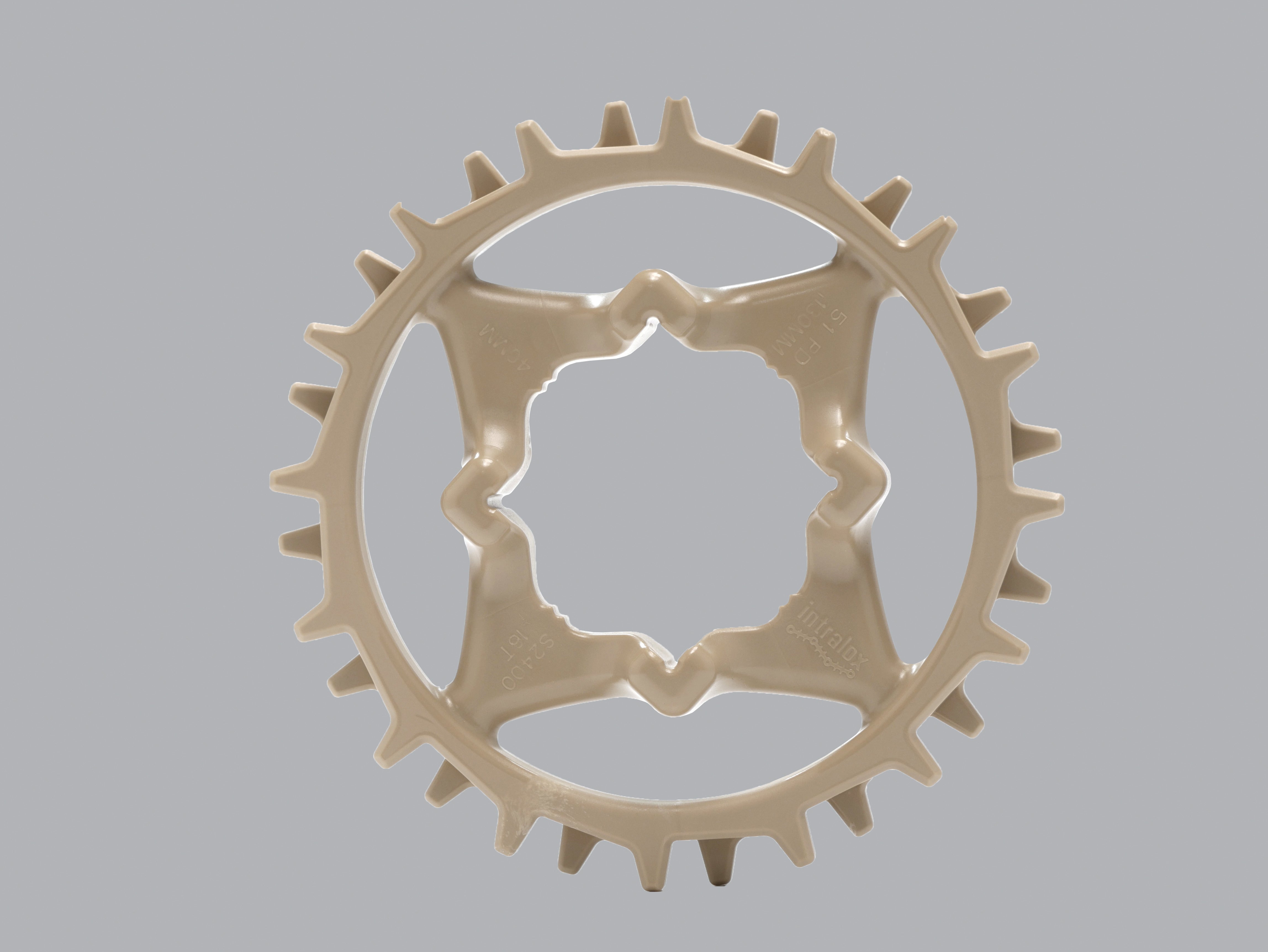

  • Sprocket drive system is designed to minimize wear and require low return side tension.
  • Designed for radius applications with a turn radius of 2.2 times the belt width (measured from inside edge).
  • Radius belt wearstrips are available.

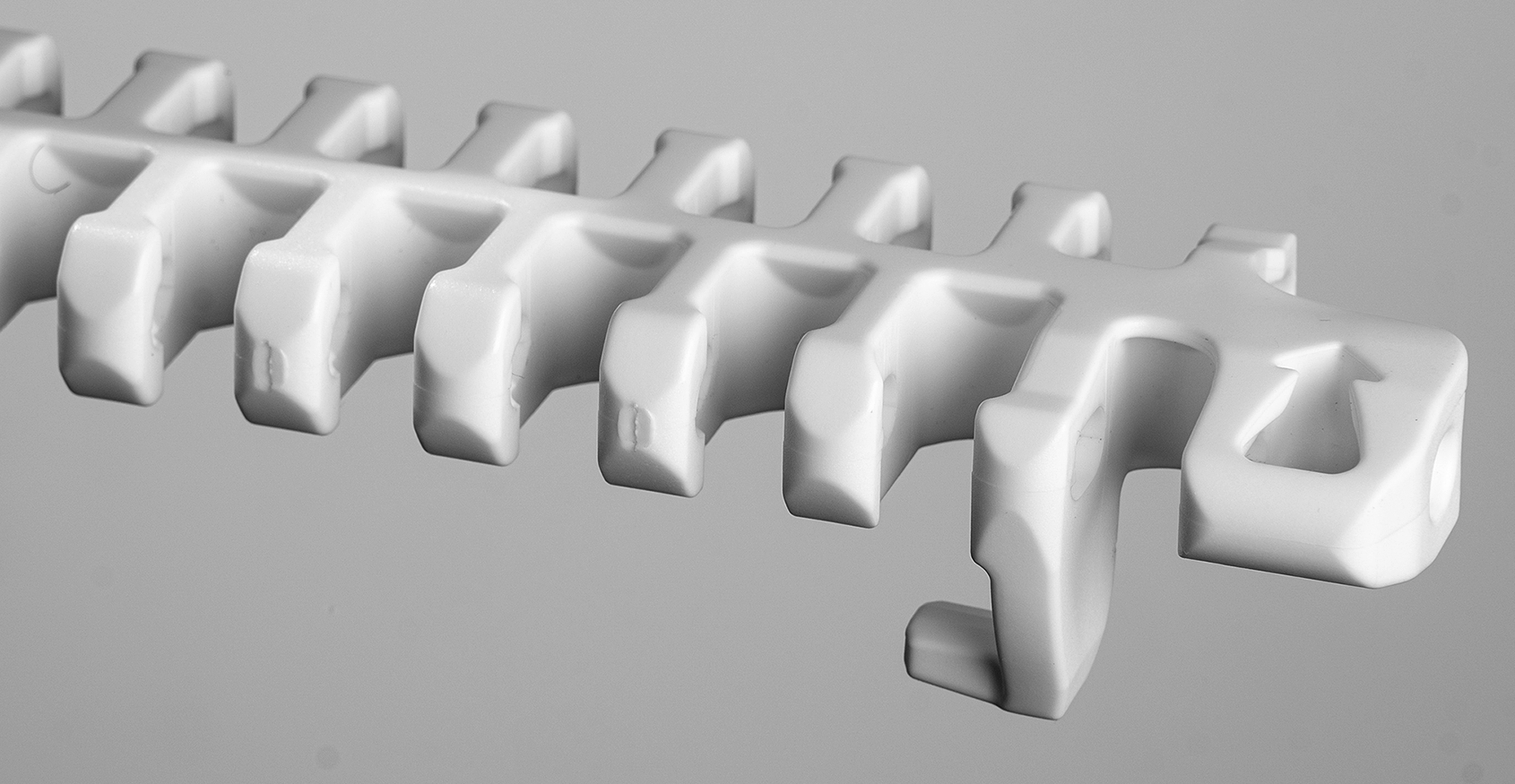

  • Available with hold down guides, see Hold Down Guides (2.2 Only) for details.
  • Contact Intralox Customer Service before using a belt wider than 36 in (914 mm) in flat-turning or spiral applications.
  • Minimum nosebar diameter: 1.5 in (38.1 mm) with hold down guides and 1.375 in (34.9 mm) without hold down guides.

Belt MaterialDefault Rod Material, Diameter 0.18 in (4.6 mm)Straight Belt StrengthCurved Belt StrengthTemperature Range (continuous)Belt Mass
lbf/ftN/m°F°Clb/ft²kg/m²
Detectable acetal HR nylon1,30019,000For curved belt strength calculations, contact Intralox Customer Service.-50 to 200-46 to 931.708.30
X-ray detectable acetal1X-ray detectable acetal 1,70024,800-50 to 200-46 to 931.859.03
HHR nylonHHR nylon1,70024,800-50 to 310-46 to 1541.436.98

  1. Designed specifically for detection by X-ray machines.

Series 2400
