Spiral GTech 2.2 and 3.2
Series 2800Reduce downtime when moving heavy products in demanding applications with the Intralox Series 2800 Spiral GTech 2.2 and 3.2 belts.
A robust retrofit option for capstan drive systems, these belts combine tight transfer capability and durability to reliably transport heavy products in harsh applications. Their modular plastic design ensures easy maintenance and cleanability while their enhanced beam strength reduces the risk of belt bowing or buckling.
- 1.5-in (38.1-mm) pitch enables tight transfers
- Suitable for spiral and radius applications
- Large open area supports product cooling and freezing
- Available with 2.2 or 3.2 modules; contact Intralox Customer Service to learn more
| in | mm | |
| Pitch | 1.5 | 38.1 |
| Minimum Width | 24 | 609.6 |
| Width Increments | 1.00 | 25.4 |
| Opening Size (approximate) | 1.1 x 0.42 | 27.9 x 10.7 |
| Open Area (fully extended) | 50% | |
| Minimum Open Area | 36% | |
| Hinge Style | Open | |
| Rod Retention; Rod Type | Occluded edge; unheaded | |
- This belt has pinch points. See the Safety section in the Intralox Conveyor Belting Installation, Maintenance & Troubleshooting Manual for more information.
- Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
- Relatively uniform open area across the width of the belt aids product freezing and cooling.
- Robust edge feature adds strength to the outside edge of the belt.
- Open hinge and slot design simplifies cleaning.
- Lightweight belt with extreme beam strength prevents bowing and buckling.
- Each belt material has a default rod material. Other rod materials are available. Intralox can help identify the best belt and rod material combination for your application.
- Detailed material information is provided in Product Line.
- Designed for low-tension, capstan drive spiral applications with a minimum turn radius of 2.2 times the belt width (measured from the inside edge).
- Contact Intralox for a spiral analysis and the preferred run direction on spiral applications.

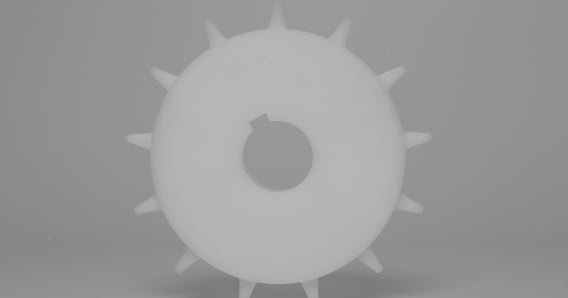

- Minimum sprocket indent from the inside belt edge and from the outside belt edge can vary. Contact Intralox Customer Service to determine exact placement.
| Belt Material | Default Rod Material, Diameter 0.24 in (6.1 mm) | Straight Belt Strength | Spiral Belt Strength1 | Temperature Range (continuous) | Belt Mass | ||||
|---|---|---|---|---|---|---|---|---|---|
| lbf/ft | N/m | lbf | N | °F | °C | lb/ft² | kg/m² | ||
| Acetal | Acetal | 1,600 | 23,400 | 475 | 2,110 | -50 to 200 | -46 to 93 | 1.60 | 7.81 |
| SELM | Acetal | 500 | 7,300 | 375 | 1,670 | -50 to 200 | -46 to 93 | 1.27 | 6.3 |
Intralox engineers are available to provide an accurate comparison of spiral belt strengths. Contact Intralox Customer Service for more information.
