Flush Grid Friction Top

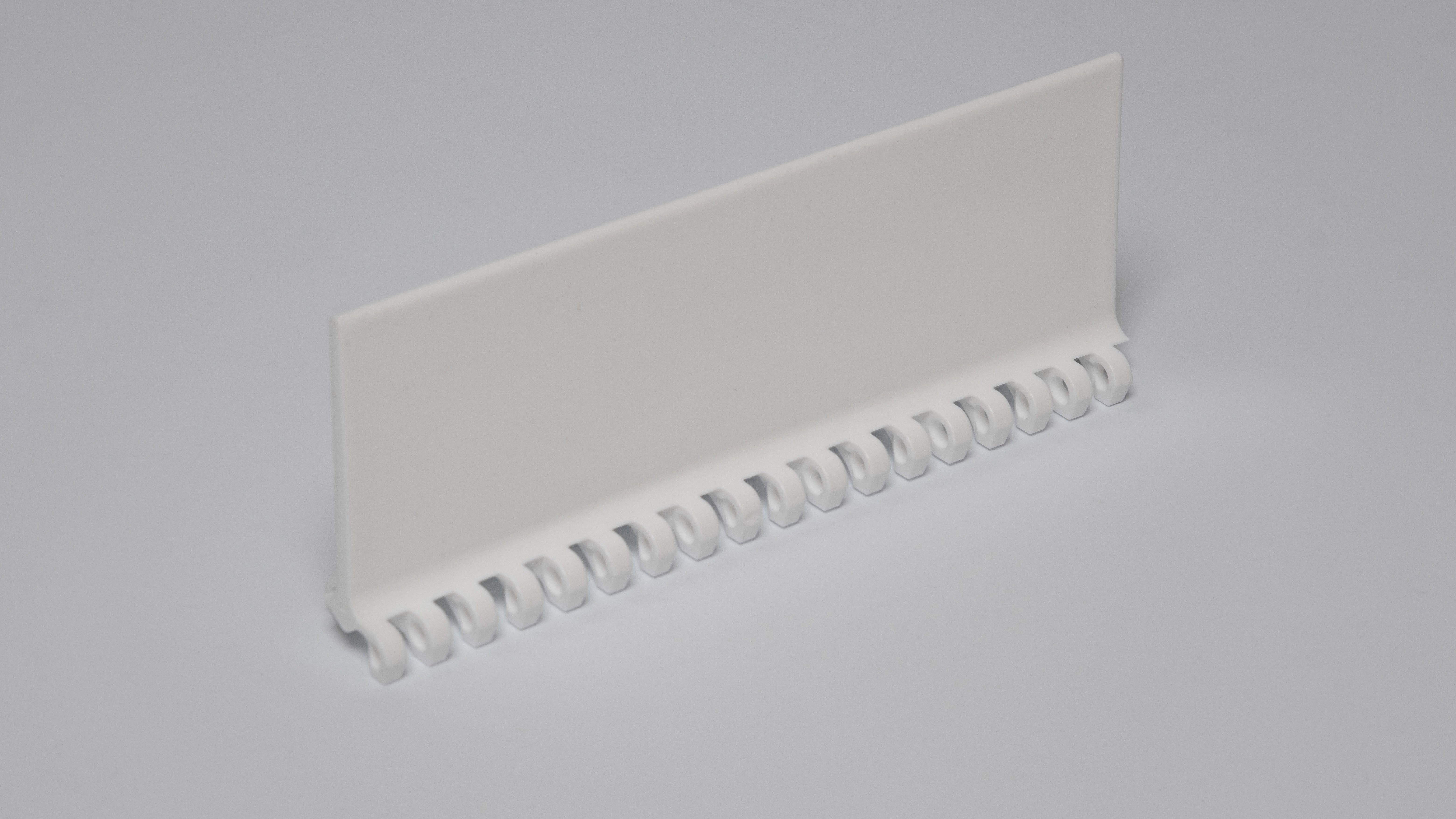

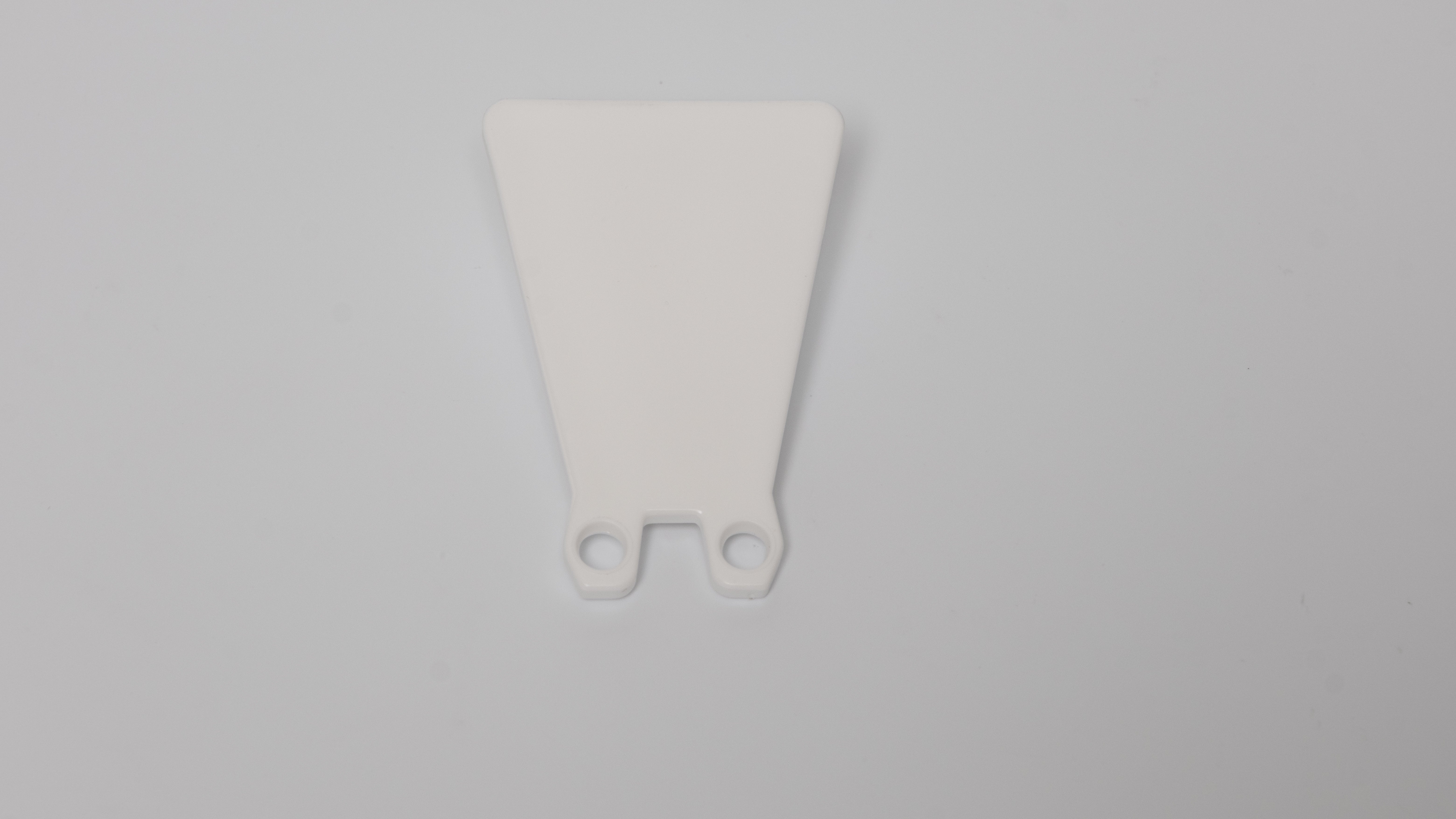

Series 1100Confidently transport products on slight inclines with the Intralox Series 1100 Flush Grid Friction Top belt.
S1100 Flush Grid Friction Top belting prevents slippage and ensures product control with its Friction Top surface. Ideal for depanning applications, it’s available in High Performance Friction Top (HPFT) material that withstands high temperatures and extends service life.
- 0.60-in (15.2-mm) pitch reduces chordal action
- 0.875-in (22.2-mm) diameter nosebars for tight transfers
- HPFT material performs within a continuous temperature range of 34°F–212°F (1°C–100°C)
- 0.34-in (8.6-mm) molded indent
| in | mm | |
| Pitch | 0.60 | 15.2 |
| Minimum Width | 3 | 76 |
| Width Increments | 0.5 | 12.7 |
| Opening Size (approximate) | 0.17 × 0.10 | 4.3 × 2.5 |
| Open Area | 28% | |
| Hinge Style | Open | |
| Rod Retention; Rod Type | Occluded edge; unheaded | |

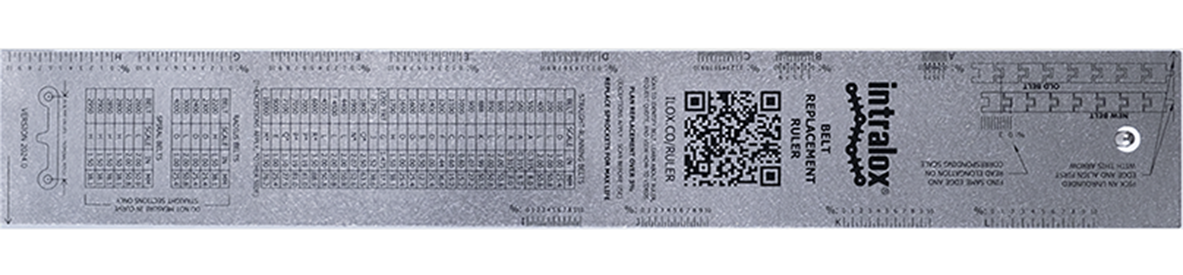

- Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
- Abrasion resistant rods are recommended.
- Available in grey polypropylene with grey rubber, blue polypropylene with blue rubber, grey polypropylene with black rubber, and white polypropylene with white rubber.
- Each belt material has a default rod material. Other rod materials are available. Intralox can help identify the best belt and rod material combination for your application.
- Detailed material information is provided in Product Line.

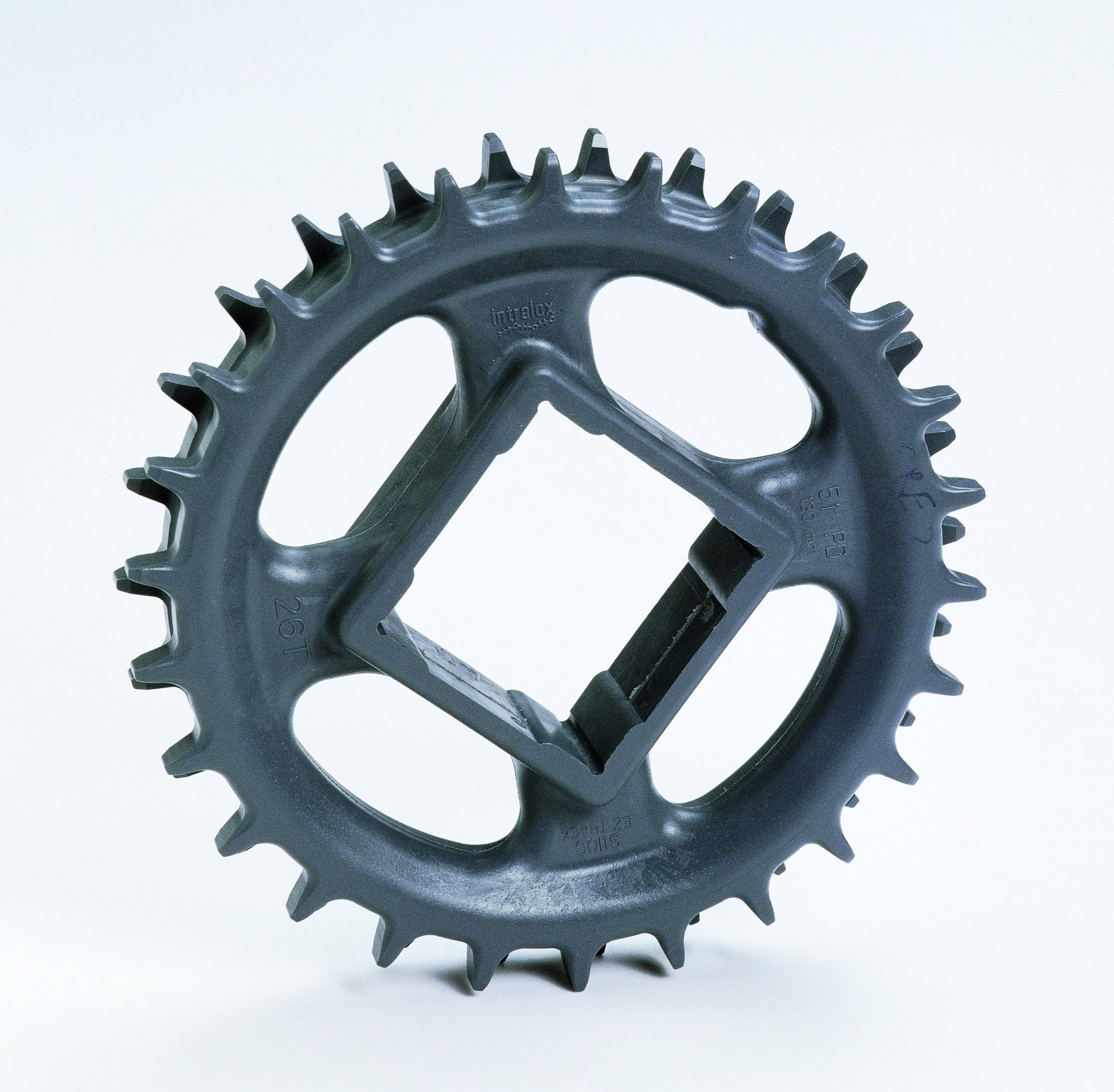

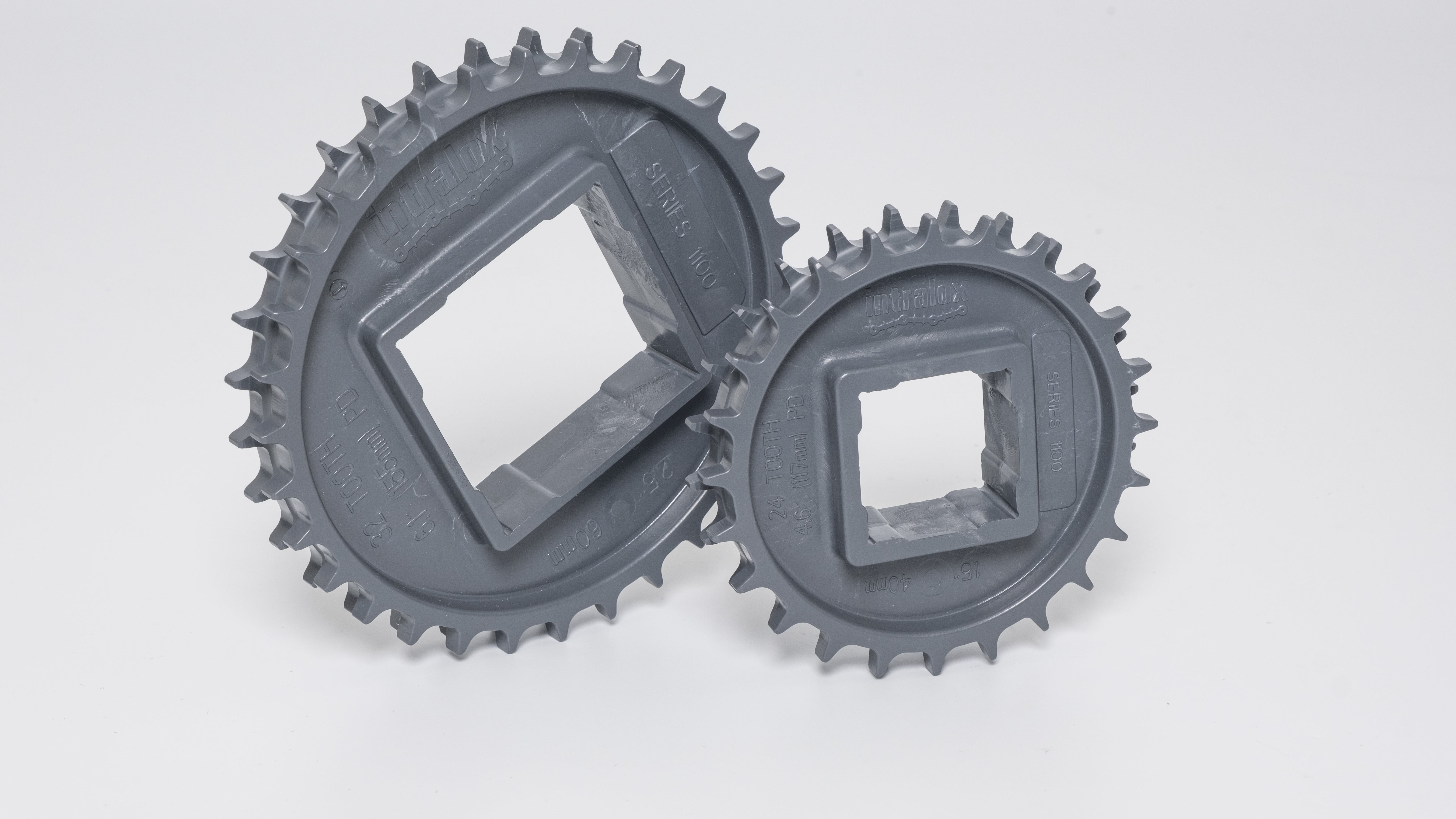

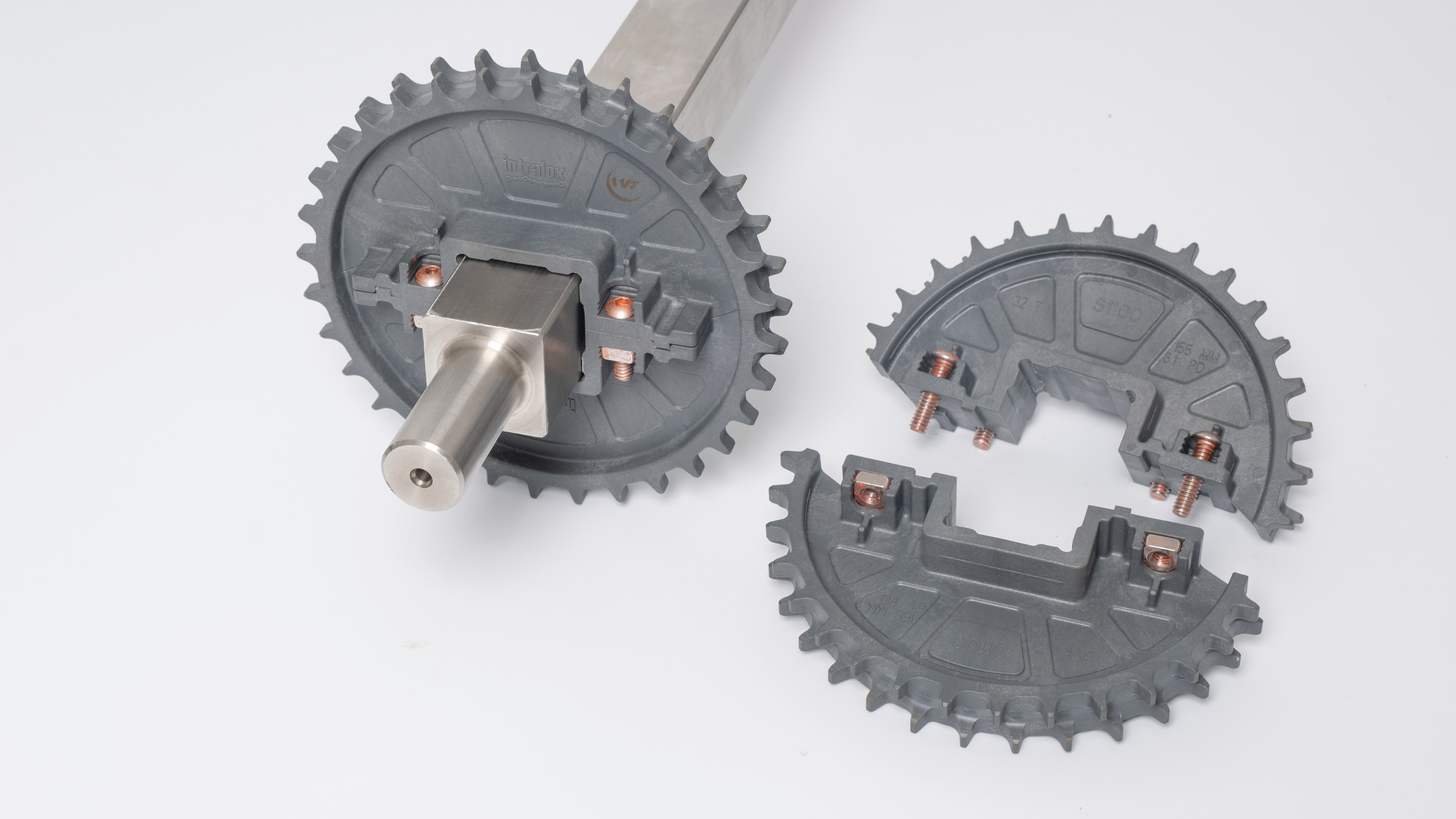

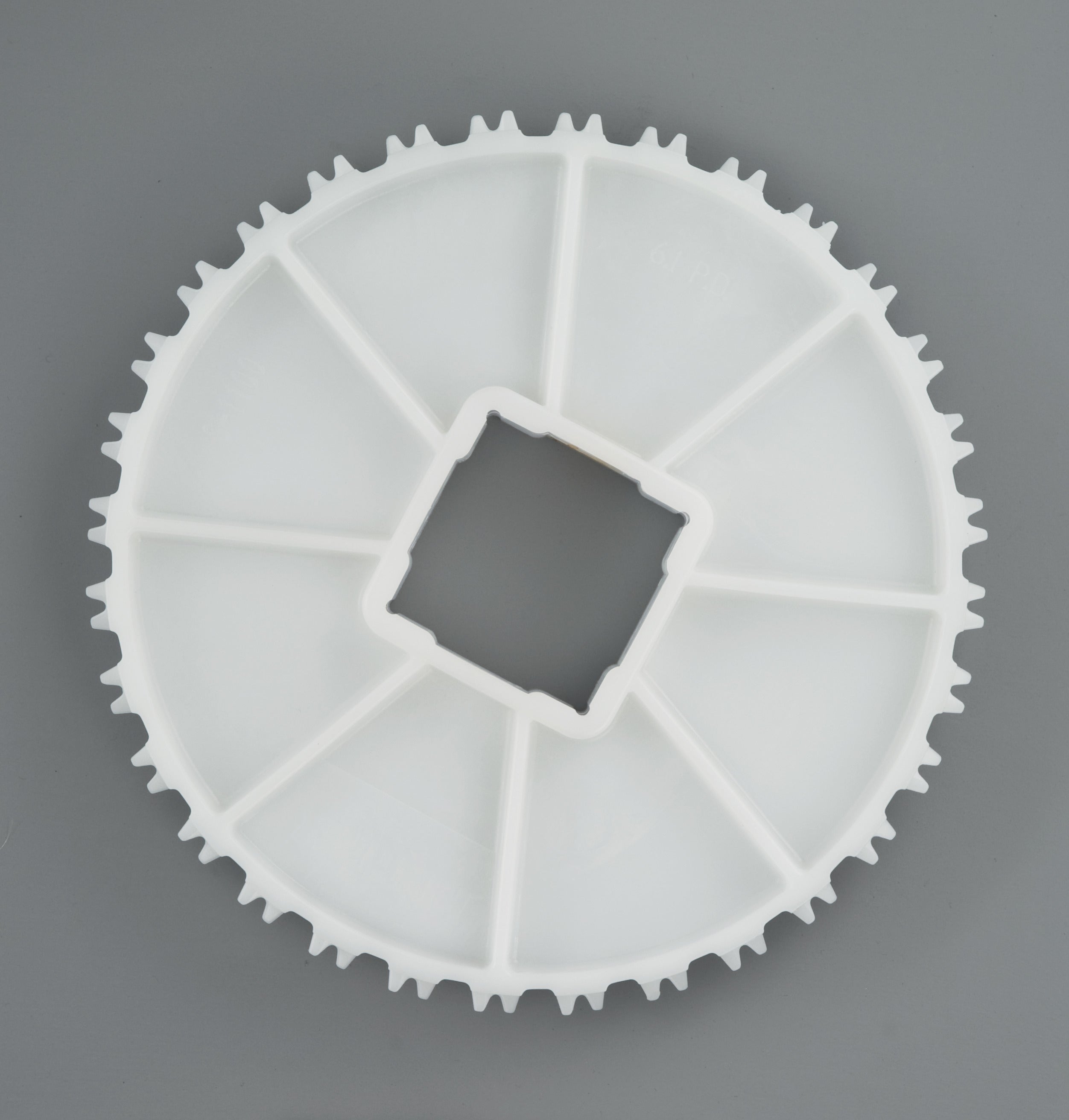

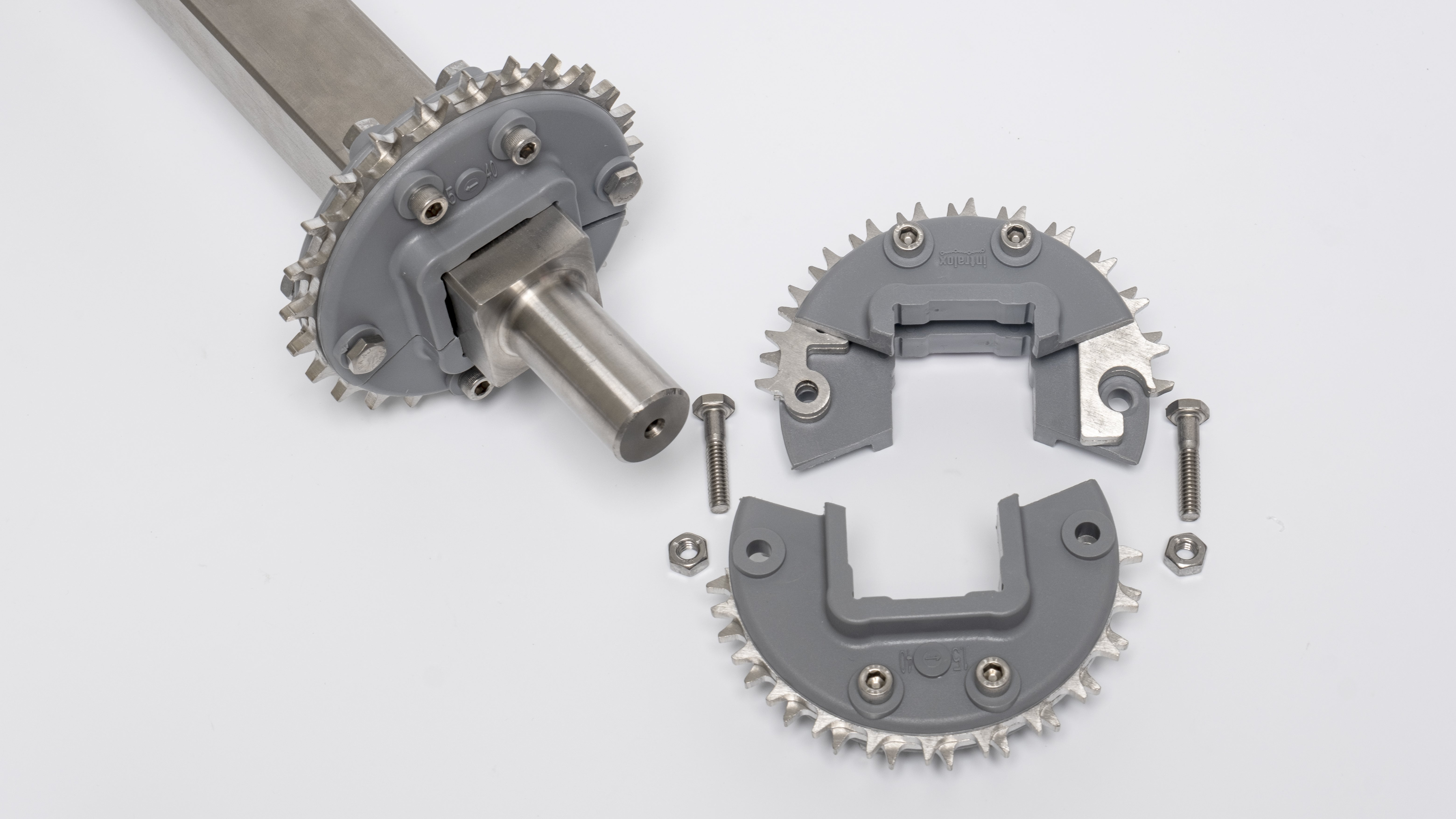

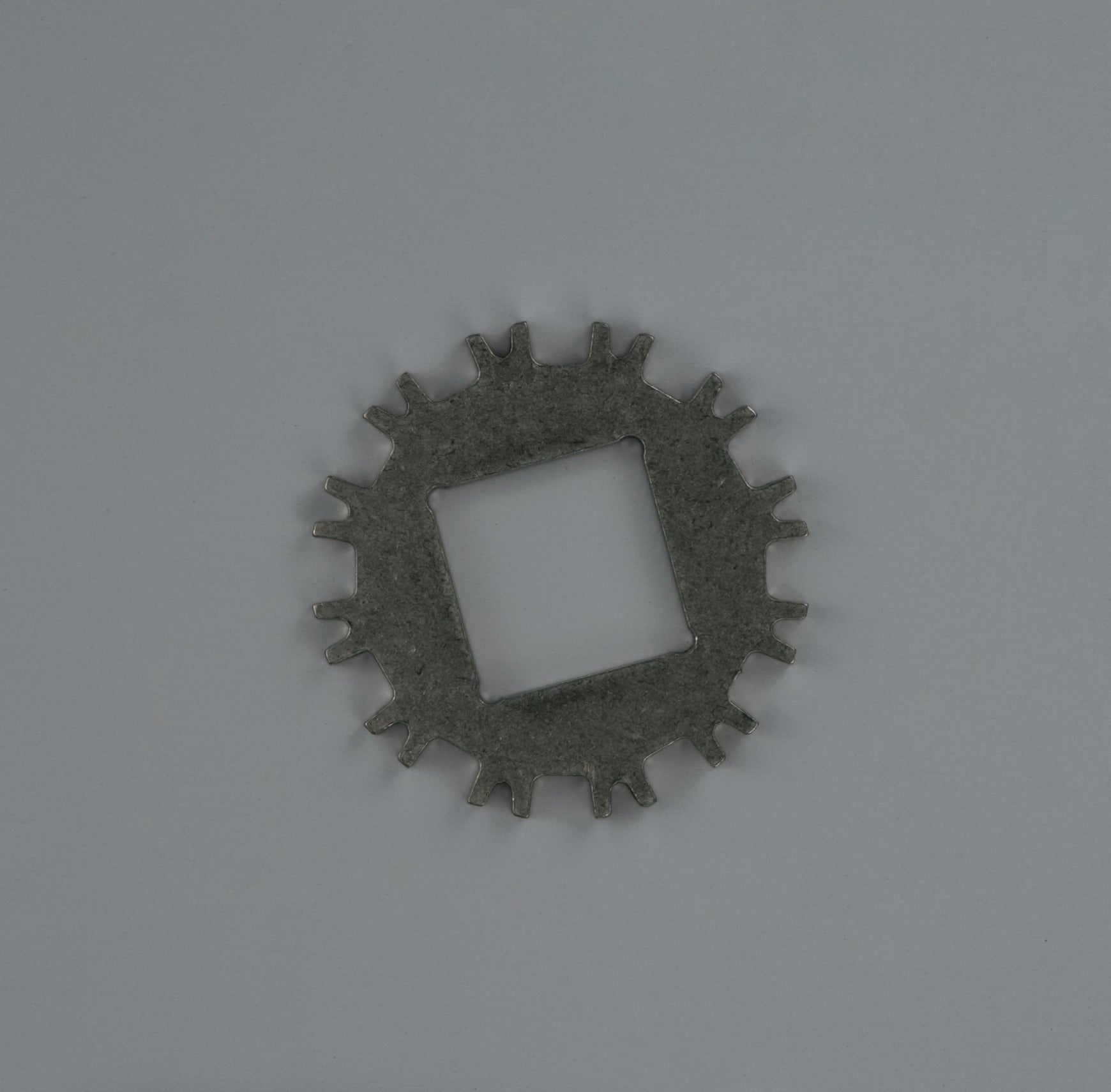

- For information regarding sprocket placement, see the center sprocket offset table in Locked Sprocket Position on Shaft.
- When using this belt on a center-drive conveyor, it can be necessary to retain the belt laterally, by placing collars at the backbend roller before the drive.
- Temperature, environmental conditions, and product characteristics affect the effective maximum degree of incline. Take these items into consideration when designing conveyor systems using these belts.
- Can be used over 0.875 in (22.2 mm) diameter nosebar for tight transfers.
- Molded indent: 0.34 in (8.6 mm)
| Base Belt Material | Base/Friction Top | Default Rod Material, Diameter 0.18 in (4.6 mm) | Belt Strength | Temperature Range (continuous) | Belt Mass | Friction Top Hardness | Agency Acceptability | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| lbf/ft | N/m | °F | °C | lb/ft² | kg/m² | FDA (USA) | EU MC1 | ||||
| Polypropylene | Grey/grey | Polypropylene | 700 | 10,200 | 34 to 150 | 1 to 66 | 1.18 | 5.76 | 64 Shore A | ||
| Polypropylene | Grey/black | Polypropylene | 700 | 10,200 | 34 to 150 | 1 to 66 | 1.18 | 5.76 | 55 Shore A | 2 | |
| Polypropylene | White/white | Polypropylene | 700 | 10,200 | 34 to 150 | 1 to 66 | 1.18 | 5.76 | 55 Shore A | 2 | 3 |
| Polypropylene | High-performance FT blue/blue | Polypropylene | 700 | 10,200 | 34 to 212 | 1 to 100 | 1.18 | 5.76 | 59 Shore A | 2 | 3 |
European Migration Certificate providing approval for food contact according to EU Regulation 10/2011.
FDA compliant with restriction: Do not use in direct contact with fatty foods.
EU compliant with restriction: Do not use in direct contact with fatty foods.
