Steel Spiral DirectDrive™
Series 22150Repair your metal spiral belts quickly and simply with the Intralox Series 22150 DirectDrive metal belt.
S22150 DirectDrive metal belting is a revolutionary no-grind, no-cut, no-weld solution for freezing, cooling, and other product conditioning applications. The only metal belt made specifically for Intralox’s DirectDrive System, its modular design significantly decreases downtime compared to traditional metal belts. This removes the need for hot work permits and accelerates installation and repairs.
- All DirectDrive System’s revolutionary features in the only metal belting made specifically for it
- Runs directly on stainless steel drum, eliminating need for plastic cage bar caps to improve system hygiene
- Robust modular design enables no-grind, no-cut, no-weld repairs without hot work permits or completely defrosting the system
- Symmetrical, high-quality steel belting can be flipped for even longer life
| in | mm | |
| Pitch | 1.5 | 38.1 |
| Minimum Width | 12 | 304.8 |
| Maximum Width | 60 | 1,524 |
| Width Increments | 1.00 | 25.4 |
| Opening Size (approximate) | 1.27 x 0.33 | 32.3 x 8.4 |
| Open Area (fully extended) | 68% | |
| Hinge Style | Open | |
| Rod Retention; Rod Type | DirectDrive caps - press fit | |
- This belt has pinch points. See the Safety section in the Intralox Conveyor Belting Installation, Maintenance & Troubleshooting Manual for more information.
- Contact Intralox for precise belt measurements and stock status before designing equipment or ordering a belt.
- The belt can be flipped and can turn left or right.
- Mesh is 16 gauge stainless steel 304 wire.
- Designed with maintenance points on every tenth row, as indicated by different colored endcaps.
- The required run direction is with slots leading.
- Belts are available in 10 ft (3 m) length increments.
- Belt available in standard widths of 30 in (762 mm), 36 in (914 mm), and 42 in (1,067 mm). Custom widths are available in 1 in (25.4 mm) increments.
- The width dimension includes drive lugs. The usable product width is the overall belt width minus 3.8 in (96 mm).
- The belt thickness at the point of product conveyance is 0.4 in (10.1 mm).
- DirectDrive caps are metal-detectable PK material.

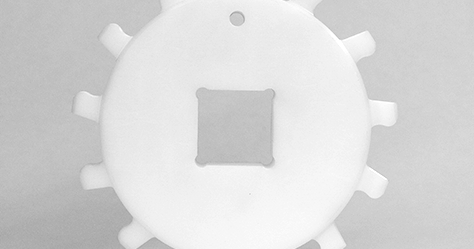

- Keyed sprockets are required at the infeed and outfeed ends of the conveyor.
| Belt Material | Default Rod Material, Diameter 0.24 in (6 mm) | Belt Strength | Spiral Belt Strength1 | Temperature Range (continuous) | Belt Mass2 | ||||
|---|---|---|---|---|---|---|---|---|---|
| lb | N | lb | N | °F | °C | lb/ft² | kg/m² | ||
| 304 stainless steel | 304 stainless steel | 800 | 3,560 | 425 | 1,890 | -40 to 176 | -40 to 80 | 2.30 | 11.23 |
Intralox engineers are available to provide an accurate comparison of spiral belt strengths. Contact Intralox Customer Service for more information.
Belt mass is based on belts with B30 wire mesh. Contact Customer Service for more information.
