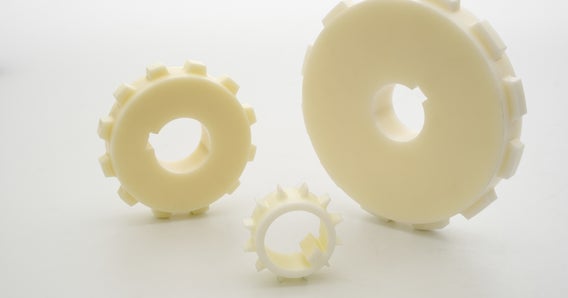

Pignon moulé en nylon (agréé FDA)
Série 2100| Nombre de dents (effet polygonal) | Largeur Diamètre primitif | Largeur Diamètre extérieur | Largeur moyeu nominale | Tailles d'alésage disponibles | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| pouce(s) | mm | pouce(s) | mm | pouce(s) | mm | Rond (pouces) | Carré (pouces) | Rond (mm) | Carré (mm) | |
| 12 (3,41%) | 2,3 | 58 | 2,4 | 61 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 2,6 | 66 | 2,7 | 70 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 3,0 | 76 | 3,1 | 78 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 3,3 | 84 | 3,4 | 87 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 3,7 | 94 | 3,8 | 96 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 4.0 | 102 | 4.1 | 104 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 4.4 | 112 | 4.5 | 113 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 4,7 | 119 | 4,8 | 122 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 5,1 | 130 | 5,1 | 131 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 5.4 | 137 | 5.5 | 139 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 5,8 | 147 | 5,8 | 148 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 6.2 | 157 | 6.2 | 157 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 6.5 | 165 | 6.5 | 165 | 1,0 | 25 | – | – | 40 | – |
| 12 (3,41%) | 6,9 | 175 | 6,9 | 174 | 1,0 | 25 | – | – | 40 | – |
